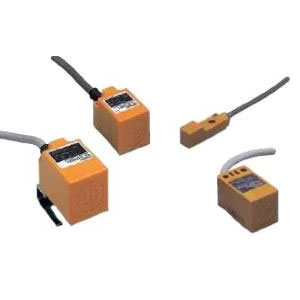

Omron TL-N20ME2 2M Proximity Sensor
Omron TL-N20ME2 2M is a rectangular unshielded proximity sensor with a 20 mm sensing distance and a 0 to 16 mm setting distance. It uses a DC 3-wire NPN output with NC operation, a pre-wired 2 m cable, and operates on 12 to 24 VDC. Ferrous metal is the detectable object, with an iron 50 × 50 × 1 mm standard sensing object. Response frequency is 40 Hz, current consumption is 8 mA max. at 12 VDC and 15 mA max. at 24 VDC, while output current reaches 100 mA at 12 VDC or 200 mA at 24 VDC. A red detection indicator and IP67 protection are listed. TL-N20ME2 2M is listed under NPN proximity sensors from Omron automation sensors.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | TL-N20ME2 2M |
Omron TL-N20ME2 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Rectangular |
| Sensing Distance | 20 mm |
| Setting Distance | 0 to 16 mm |
| Output Configuration | DC 3-wire, NPN |
| Operation Mode | NC |
| Connection | Pre-wired 2 M Cable |
| Differential Travel | 15% max. of sensing distance |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 50 × 50 × 1 mm |
| Response Frequency | 40 Hz |
| Current Consumption | 8 mA max. at 12 VDC, 15 mA max. at 24 VDC |
| Control Output Load Current | 100 mA max. at 12 VDC, 200 mA max. at 24 VDC |
| Indicator | Detection indicator (red) |
| Protection Circuit | Reverse polarity protection, Surge suppressor |
| Ambient Temperature Range | Operating/Storage: −25 to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/Storage: 35% to 95% (with no condensation) |
| Material | Heat-resistant ABS |
| Degree Of Protection | IP67 |
| Weight | Approx. 340 g |
The Omron TL-N20ME2 2M Proximity Sensor uses a rectangular unshielded sensing configuration with a 20 mm sensing distance and a 0 to 16 mm setting distance. It provides a DC 3-wire NPN output with NC operation through a pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is specified as the detectable object, with an iron 50 × 50 × 1 mm standard sensing object. Response frequency is 40 Hz, current consumption is 8 mA max. at 12 VDC and 15 mA max. at 24 VDC, control-output current reaches 100 mA at 12 VDC or 200 mA at 24 VDC, and differential travel is 15% max. of sensing distance.
Environmental limits for the TL-N20ME2 are -25 to 70°C for operation and storage, with humidity from 35% to 95%. Heat-resistant ABS is listed as the construction material, and IP67 is the specified protection level. A red detection indicator is provided, together with reverse-polarity protection and surge suppression. The 20 mm sensing distance is paired with NPN NC switching and a pre-wired 2 m cable. For another rectangular Omron proximity sensor using DC 3-wire NPN output but NO operation and a 7.5 mm sensing distance, see TL-G3D-3.
