Omron E2A-M30LS15-M1-B1 Proximity Sensor
Omron E2A-M30LS15-M1-B1 uses an M30 shielded inductive sensing structure with a 15 mm sensing distance, 0 to 12 mm setting distance, and long-body construction. It provides a PNP output with NO operation through an M12 connector and operates from a 12 to 24 VDC supply. Ferrous metal is the specified detectable object, with a 45 × 45 × 1 mm standard sensing object. Response frequency is 250 Hz, current consumption is 10 mA max., and differential travel is 10% max. of sensing distance. A yellow operation LED, electrical protection functions, and IP67 protection are specified. The E2A-M30LS15-M1-B1 is included under shielded inductive sensors from Omron industrial sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2A-M30LS15-M1-B1 |
Omron E2A-M30LS15-M1-B1 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M30 |
| Mounting | Shielded |
| Sensing Distance | 15 mm |
| Setting Distance | 0 to 12 mm |
| Body Length | Long body |
| Output Configuration | PNP |
| Operation Mode | NO |
| Connection | M12 connector |
| Power Supply Voltage | 12 to 24 VDC |
| Body Material | Brass |
| Thread Length | 66 mm |
| Overall Length | 80 mm |
| Standard Target | 45×45×1 mm |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Response Frequency | 250 Hz |
| Current Consumption | 10 mA max |
| Indicator | Operation indicator (Yellow LED) |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient Temperature Range | Operating: −40°C to 70°C, Storage: −40°C to 85°C (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35% to 95%, Storage: 35% to 95% |
| Insulation Resistance | ±10% max. of sensing distance at 23°C within temperature range of −25°C to 70°C ±15% max. of sensing distance at 23°C within temperature range of −40°C to 70°C |
| Dielectric Strength | 50 MΩ min. (at 500 VDC) between current carry parts and case |
| Vibration Resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions |
| Shock Resistance | 1,000 m/s2, 10 times each in X, Y and Z directions |
| Voltage Influence | ±1% max. of sensing distance in rated voltage range ±15% |
| Degree Of Protection | IP67 |
| Weight | Approx. 200 g |
The Omron E2A-M30LS15-M1-B1 Proximity Sensor uses an M30 shielded inductive sensing head with a 15 mm sensing distance, a 0 to 12 mm setting distance, and long-body construction. Its PNP output operates in NO mode through an M12 connector, with a 12 to 24 VDC supply. Ferrous metal is the specified detectable object, using a 45 × 45 × 1 mm standard sensing object. Response frequency is 250 Hz, current consumption is 10 mA max., and differential travel is 10% max. of sensing distance. A yellow LED provides operation indication. Output reverse-polarity protection, power-source reverse-polarity protection, surge suppression, and short-circuit protection are included.

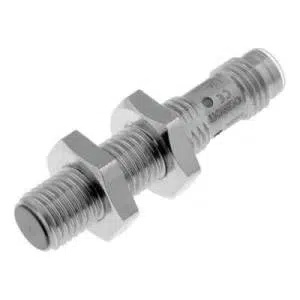

Operating specifications for the E2A-M30LS15-M1-B1 cover -40 to 70°C, with storage from -40 to 85°C and humidity from 35% to 95%. Temperature influence is ±10% max. of sensing distance at 23°C from -25 to 70°C and ±15% max. from -40 to 70°C. Insulation resistance is 50 MΩ min. at 500 VDC, dielectric strength is 1,000 VAC for 1 minute, and voltage influence is ±1% max. within rated voltage ±15%. The case material is brass and the protection level is IP67. For another PNP NO E2A model with M8 size, 2 mm sensing, and an M8 connector, see E2A-S08KS02-M5-B1.
