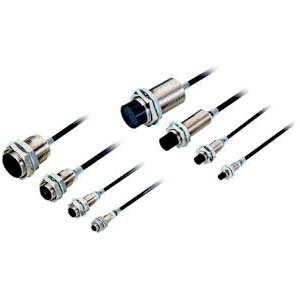

Omron E2EQ-X10B3D30 2M Proximity Sensor
The Omron E2EQ-X10B3D30 2M Proximity Sensor offers Inductive, M30, Shielded, 10 mm Sensing distance, DC 3-wire PNP NO+NC, Pre-wired 2 M Cable, 10 to 30 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2EQ Series.
| Brand | Omron |
| Product Type | Proximity Sensor |
| Model Number | E2EQ-X10B3D30 2M |
Omron E2EQ-X10B3D30 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Size | M30 |
| Mounting type | Shielded |
| Sensing Distance | 10 mm |
| Setting Distance | 0 to 8 mm |
| Output configuration | DC 3-wire PNP |
| Operation Mode | NO+NC |
| Connection Method | Pre-wired 2 M Cable |
| Detectable Object | Ferrous metals |
| Standard Sensing Object | 30 Γ 30 Γ 1 mm |
| Response Frequency | 400 Hz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection |
| Ambient Temperature Range | Operating/Storage: -40 to 85Β°C (with no icing or condensation) |
| Degree of Protection | IEC 60529:IP67, JIS C 0920 Annex 1: IP67G |
| Control Output | 1-output models: 10 to 30 VDC, Class 2, 200 mA max, 2-output models:10 to 30 VDC, Class 2, 100 mA max. |
| Indicators | In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals) |
| Materials | Fluororesin coating (Base material: brass), Fluorine resin, Fluororesin coating (Base material: brass), Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 240 g |
The Omron E2EQ-X10B3D30 2M is often compared with other models in the E2EQ group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron E2EQ-X11D118-M1TGJ 0.3M (M18, 11 mm sensing, DC 2-wire, NO, M12 Smartclick Connector 0.3 M Cable), Omron E2EQ-X20D230 2M (20 mm sensing, DC 2-wire, NC), and Omron E2EQ-X10D1-M1GJ 0.5M (DC 2-wire, NO, M12 Standard Connector 0.5 M Cable) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The E2EQ-X10B3D30 2M integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Proximity Sensor.
