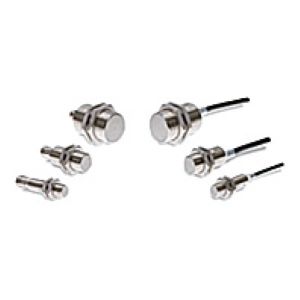

Omron E2EH-X3B2 2M Proximity Sensor
Omron E2EH-X3B2 2M features an M12 shielded inductive body with 3 mm sensing, a 0 to 2.4 mm setting range, and DC 3-wire PNP NC switching. Connection is through a pre-wired 2 m cable, with 12 to 24 VDC operating voltage and a 500 Hz response frequency. The E2EH-X3B2 2M sits within the E2EH Series for applications involving elevated operating temperatures, while other compact switching choices are grouped in the wider 3 mm PNP proximity sensor range offered through Omron Automation Sensors.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EH-X3B2 2M |
Omron E2EH-X3B2 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M12 |
| Mounting type | Shielded |
| Sensing Distance | 3 mm |
| Setting Distance | 0 to 2.4 mm |
| Output configuration | DC 3-wire PNP |
| Operation Mode | NC |
| Connection Method | Pre-wired 2 M Cable |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 12 × 12 × 1 mm |
| Response Frequency | 500 Hz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Power supply reverse polarity protection, Surge suppressor, Load short-circuit protection, Reversed output polarity protection |
| Ambient Temperature Range | Operating: 0 to 100°C Storage: −25 to 70°C (with no icing or condensation) |
| Degree of Protection | IEC IP67, DIN 40050-9 IP69K |
| Control Output | 100 mA max. |
| Indicators | Operation indicator (yellow) |
| Materials | Stainless steel (SUS316L), PBT, Heat-resistant PVC cable. |
| Weight | Approx. 80 g |
The Omron E2EH-X3B2 2M Proximity Sensor uses an M12 shielded inductive sensing body with a 3 mm sensing distance and a setting range of 0 to 2.4 mm. DC 3-wire PNP output is configured for normally closed operation and is connected through a pre-wired 2 m cable. Operating voltage covers 12 to 24 VDC and response frequency reaches 500 Hz. Ferrous metal is specified with an iron 12 × 12 × 1 mm standard object. Output capacity is 100 mA max., together with supply reverse-polarity, surge, load short-circuit, and output reverse-polarity protection.
For compact high-temperature sensing where an Omron M12 proximity sensor with PNP NC switching and 3 mm range is required, the suitable specification is the E2EH-X3B2. Operating temperature spans 0 to 100°C and storage extends from -25 to 70°C. IEC IP67 and DIN 40050-9 IP69K are stated, while SUS316L stainless steel, PBT, and heat-resistant PVC cable appear in the material specification. This model format also covers needs for an Omron PNP proximity sensor, Omron 3 mm proximity sensor, and Omron shielded proximity sensor. For a related M12 PNP model with normally open switching and an M12 connector, see E2EH-X3B1-M1.
