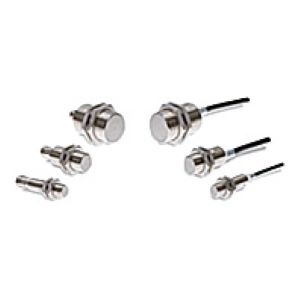

Omron E2EH-X12D1 2M Proximity Sensor
Omron E2EH-X12D1 2M is an M30 shielded high-temperature inductive proximity sensor with a 12 mm sensing distance and a 0 to 9.6 mm setting distance. It uses a DC 2-wire NO output through a pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is specified as the sensing target, paired with an iron 36 × 36 × 1 mm standard sensing object. Response frequency is 100 Hz, while control output is rated from 3 to 100 mA. Red and yellow LEDs indicate operation and setting status. The E2EH-X12D1 2M is included among M30 high-temperature sensors from Omron industrial sensing solutions.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EH-X12D1 2M |
Omron E2EH-X12D1 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M30 |
| Mounting type | Shielded |
| Sensing Distance | 12 mm |
| Setting Distance | 0 to 9.6 mm |
| Output configuration | DC 2-wire |
| Operation Mode | NO |
| Connection Method | Pre-wired 2 M Cable |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron 36 × 36 × 1 mm |
| Response Frequency | 100 Hz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operating: 0 to 100°C Storage: −25 to 70°C (with no icing or condensation) |
| Degree of Protection | IEC IP67, DIN 40050-9 IP69K |
| Control Output | 3 to 100 mA |
| Indicators | Operation indicator (red), Setting indicator (yellow) |
| Materials | Stainless steel (SUS316L), PBT, Heat-resistant PVC cable. |
| Weight | Approx. 220 g |
The Omron E2EH-X12D1 2M Proximity Sensor uses an M30 shielded inductive sensing body with a 12 mm sensing distance and a 0 to 9.6 mm setting distance. It provides a DC 2-wire NO output through a pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is specified as the detectable object, paired with an iron 36 × 36 × 1 mm standard sensing object. Response frequency is 100 Hz, while control output is rated from 3 to 100 mA. Red and yellow indicators provide operation and setting status, while surge suppression and load short-circuit protection are specified for the sensing circuit.
Operating conditions for the E2EH-X12D1 extend from 0 to 100°C, while storage is specified from -25 to 70°C without icing or condensation. IEC IP67 and DIN 40050-9 IP69K are listed as protection ratings. SUS316L stainless steel, PBT, and heat-resistant PVC cable are included among the construction materials. The shielded M30 sensing arrangement combines a 12 mm range with DC 2-wire NO switching for high-temperature industrial detection. Its fixed cable provides direct connection to control wiring. For another E2EH sensor using DC 3-wire NPN operation with an M12 body and 3 mm sensing distance, see E2EH-X3C1 2M.
