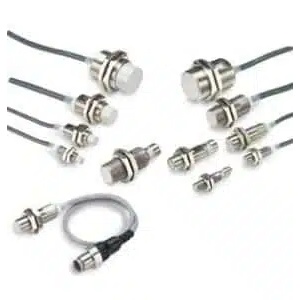

E2E-X8MD1-M1GJ 0.3M: Omron Proximity Switch M12 in Chennai
The technical specifications of Omron Proximity Switch M12 E2E-X8MD1-M1GJ 0.3M:
- Sensor Head: M12 (12mm)
- Installation: Non-Flush/Unshielded
- Sensing Distance: 8 mm
- Connection Method: M12 Standard Pre-wired Connector Models(0.3 m)
- Switching: NO
- Cable Specifications: PVC (oil-resistant)
- Output Configuration: DC 2 Wire
- Power supply voltage: 12 to 24 VDC
Omron Proximity Switch M12 E2E-X8MD1-M1GJ 0.3M Technical Specification:
| Sensor Head (Dia) | M12 (12mm) |
| Installation | Non-Flush | Unshielded |
| Sensing Distance | 8 mm |
| Connection Method | M12 Standard Pre-wired Connector Models(0.3 m) |
| Cable Specifications | PVC (oil-resistant) |
| Switching | NO |
| Output Configuration | DC 2 Wire (No Self-diagnostic Output) |
| Differential travel | 15% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard sensing object | Iron, 30 × 30 × 1 mm |
| Response frequency | 0.8 kHz |
| Power supply voltage | 12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC) |
| Leakage current | 0.8 mA max |
| Indicator | Operation indicator (red) and setting indicator (green) |
| Protection circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient air temperature | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Ambient humidity | Operating/storage: 35% to 95% (with no condensation) |
| Voltage influence | ±1% max. of sensing distance at a rated voltage in the rated voltage ±15% range |
| Degree of protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Material Case | Stainless steel (SUS303) |
| Material Sensing surface | PBT |
Are you looking for the Omron E2E-X8MD1-M1GJ 0.3M? You’ve come to the right place. This Omron Proximity Switch M12, a non-flush unshielded installation, 8 mm sensing distance, 0.3m M12 standard pre-wired connector models, Normally Open (NO) switching, oil-resistant PVC cable, DC 2 Wire output, and operates on 12-24 VDC power. It has a max 15% differential travel, is designed for detecting ferrous metal, and has a response frequency of 0.8 kHz. Get the best prices at IndMALL Automation in Chennia.
