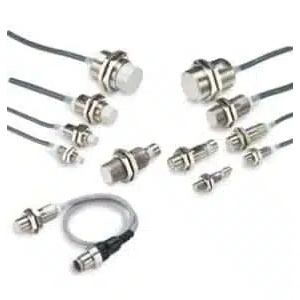

Omron E2E-X20MD1-M1GJ 0.3M Proximity Sensor
Omron E2E-X20MD1-M1GJ 0.3M combines an M30 unshielded inductive sensing body with a 20 mm sensing distance and a 0 to 16 mm setting distance. It provides a DC 2-wire NO output through a pre-wired oil-resistant PVC connection and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 54 × 54 × 1 mm standard sensing object. Leakage current is 0.8 mA max., response frequency is 0.1 kHz, and differential travel is 10% max. of sensing distance. Red and green indicators provide operation and setting indication, while IP67 protection is specified. The E2E-X20MD1-M1GJ 0.3M is included under long-range proximity sensors from Omron sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X20MD1-M1GJ 0.3M |
Omron E2E-X20MD1-M1GJ 0.3M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M30 |
| Mounting | Unshielded |
| Sensing Distance | 20 mm |
| Setting Distance | 0 to 16 mm |
| Output Configuration | DC 2-Wire |
| Operation Mode | NO |
| Connection | Pre Wired, Length 2M |
| Cable Specifications | PVC (oil-resistant) |
| Power Supply Voltage | 12 to 24 VDC |
| Standard Target | Iron, 54 × 54 × 1 mm |
| Leakage Current | 0.8 mA max. |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Response Frequency | 0.1 kHz |
| Indicator | Operation indicator (red) and setting indicator (green) |
| Protection Circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient Temperature Range | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | ±10% max. of sensing distance at 23°C in the temperature range of −25 to 70°C |
| Dielectric Strength | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions |
| Voltage Influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Degree Of Protection | IP67 |
The Omron E2E-X20MD1-M1GJ 0.3M Proximity Sensor uses an M30 unshielded inductive sensing body with a 20 mm sensing distance and a 0 to 16 mm setting distance. It provides a DC 2-wire NO output through a pre-wired oil-resistant PVC connection and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 54 × 54 × 1 mm standard sensing object. Leakage current is 0.8 mA max., response frequency is 0.1 kHz, and differential travel is 10% max. of sensing distance. Red and green indicators show operation and setting status, with surge suppression and load short-circuit protection.
Operating temperature for the E2E-X20MD1-M1GJ is -25 to 70°C, while storage extends from -40 to 85°C with humidity from 35% to 95%. Temperature influence is ±10% max. of sensing distance at 23°C across -25 to 70°C. Insulation resistance is 50 MΩ min. at 500 VDC, dielectric strength is 1,000 VAC for 1 minute, and voltage influence is ±1% max. within rated voltage ±15%. Vibration resistance is specified at 10 to 55 Hz with 1.5 mm double amplitude for two hours in each axis, while shock resistance is 1,000 m/s² ten times in each direction. IP67 protection is listed. For another M30 E2E sensor using NO operation and an M12 connector but a 10 mm sensing distance with PNP DC 3-wire output, see E2E-X10F1-M1.
