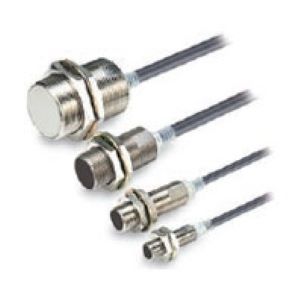

Omron E2E-X5MY2 2M Proximity Sensor
Omron E2E-X5MY2 2M is an M12 unshielded inductive proximity sensor with a 5 mm sensing distance and a 0 to 4 mm setting distance. It provides an AC 2-wire NC output through an oil-resistant PVC pre-wired 2 m cable and operates from 24 to 240 VAC. Ferrous metal is the specified detection target, paired with an iron 15 × 15 × 1 mm standard sensing object. Response frequency is 25 Hz, while control output is rated from 5 to 200 mA. A red operation indicator and surge suppressor are specified. The E2E-X5MY2 2M is part of AC 2-wire proximity sensors from Omron factory automation sensors for industrial metal sensing.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X5MY2 2M |
Omron E2E-X5MY2 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | Cylindrical |
| Size | M12 |
| Mounting type | Unshielded |
| Sensing Distance | 5 mm |
| Setting Distance | 0 to 4 mm |
| Output configuration | AC 2 Wire |
| Operation Mode | NC |
| Connection Method | Pre-wired 2 M Cable |
| Cable specifications | PVC (Oil-resistant) |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 15 × 15 × 1 mm |
| Response Frequency | 25 Hz |
| Power Supply Voltage | 24 to 240 VAC |
| Protection Circuit | Surge suppressor |
| Ambient Temperature Range | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 5 to 200 mA |
| Indicators | Operation indicator (red) |
| Materials | Nickel-plated brass, Polybutylene terephthalat (PBT), Nickel-plated brass, Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 70 g |
The Omron E2E-X5MY2 2M Proximity Sensor uses a cylindrical M12 unshielded inductive sensing body with a 5 mm sensing distance and a 0 to 4 mm setting distance. It provides AC 2-wire NC switching through an oil-resistant PVC pre-wired 2 m cable and operates from 24 to 240 VAC. Ferrous metal is the specified detectable object, with an iron 15 × 15 × 1 mm standard sensing object. Response frequency is 25 Hz, while control output is rated from 5 to 200 mA. A red operation indicator is specified together with surge suppression. Nickel-plated brass, PBT, zinc-plated iron, and PVC are listed among the sensor construction materials.
Operating conditions for the E2E-X5MY2 extend from -25 to 70°C, while storage is specified from -40 to 85°C without icing or condensation. IEC 60529 IP67 and an in-house oil-resistant rating are listed. The M12 unshielded format provides the stated 5 mm sensing range, while the normally closed AC 2-wire output supports circuits requiring NC switching. Its fixed oil-resistant 2 m cable permits direct routing to machine wiring without a detachable sensor connector. The broad 24 to 240 VAC supply range supports a variety of AC control-voltage applications. For another E2E model in the supplied comparison set with an M18 body, 10 mm sensing distance, DC 3-wire NPN output, and M12 connector, see E2E-X10MC318-M1.
