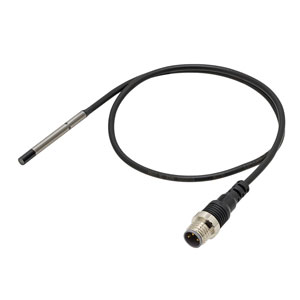

Omron E2E-S05S12-CJ-C1 0.3M Small-diameter Proximity Sensor
Omron E2E-S05S12-CJ-C1 0.3M is an M5 shielded inductive proximity sensor with a 1.2 mm sensing distance and a 0 to 0.84 mm setting distance. It uses a DC 3-wire NPN output with NO operation through a 3-pin M8 pre-wired connector and PVC cable, operating from 10 to 30 VDC. Ferrous metal is the specified detectable object, with an iron 4 × 4 × 1 mm standard sensing object. Response frequency is 4 kHz, and control output is rated 100 mA max. with a 2 V max. voltage drop. The E2E-S05S12-CJ-C1 0.3M is included among M5 shielded proximity sensors from Omron automation sensing products for compact machines.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-S05S12-CJ-C1 0.3M |
Omron E2E-S05S12-CJ-C1 0.3M Small-diameter Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | SUS or threaded |
| Size | M5 |
| Mounting type | Shielded |
| Sensing Distance | 1.2 mm |
| Setting Distance | 0 to 0.84 mm |
| Output configuration | DC 3-wire NPN |
| Operation Mode | NO |
| Connection Method | M8 Pre-wired Connector, 3-pin |
| Cable specifications | PVC (oil-resistant) |
| Wire color / pin arrangement | 1: +V, 3: 0 V, 4: Control output |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 4 × 4 × 1 mm |
| Response Frequency | 4 kHz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operation and storage: −25 to 70°C |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 100 mA max. 2 V max. |
| Indicators | Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output. |
| Materials | SUS303 (EN 1.4305), Heat-resistant ABS, SUS430 (EN 1.4016), SUS303 (EN 1.4305), Polyvinyl chloride (PVC) |
| Weight | Approx. 20 g |
The Omron E2E-S05S12-CJ-C1 0.3M Small-diameter Proximity Sensor uses an M5 shielded inductive sensing body with a 1.2 mm sensing distance and a 0 to 0.84 mm setting distance. It provides a DC 3-wire NPN output with NO operation through a 3-pin M8 pre-wired connector and PVC cable, operating from 10 to 30 VDC. Ferrous metal is the specified detectable object, with an iron 4 × 4 × 1 mm standard sensing object. Response frequency is 4 kHz, while control output is rated 100 mA max. with a 2 V max. voltage drop. A yellow operation LED is provided together with reverse-polarity, surge, and load short-circuit protection.
Operating and storage conditions for the E2E-S05S12-CJ-C1 cover -25 to 70°C. IEC 60529 IP67 and an in-house oil-resistant rating are listed for environmental protection. The shielded M5 configuration supports installation close to surrounding metal, while the short 1.2 mm sensing range is intended for compact ferrous-target detection. SUS303 stainless steel, SUS430, heat-resistant ABS, and PVC are specified among the construction materials. Its 4 kHz response frequency supports rapid switching, while the pre-wired M8 connector combines a short cable section with detachable machine wiring. For another M5 shielded E2E sensor using the same 1.2 mm sensing distance but PNP NC operation, see E2E-S05S12-MC-B2.
