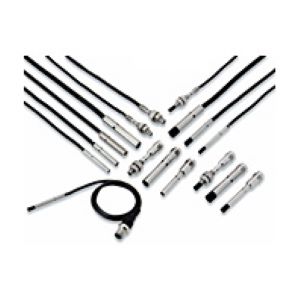

E2E-S05N03-MC-B1: Small Diameter Proximity Sensor in Chennai
The technical specifications for Omron E2E-S05N03-MC-B1 Small Diameter Proximity Sensor:
- Sensor Head (Dia): M5
- Installation: Unshielded
- Sensing Distance: 3 mm
- Connection Method: M8 Connector Models
- Power source: DC Three-wires models
- Switching: NO
- Output: PNP
- Response Frequency: 2 kHz
- Power Supply Voltage: 10 to 30 VDC
Omron E2E-S05N03-MC-B1 Small Diameter Proximity Sensor Technical Specification:
| Sensor Head (Dia) | M5 |
| Installation | Non-Flush | Unshielded |
| Sensing Distance | 3 mm |
| Connection Method | M8 Connector Models |
| Power source | DC Three-wires models |
| Switching | NO |
| Output | PNP |
| Differential travel | 15% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard sensing object | Iron, 9 × 9 × 1 mm |
| Response frequency | 2 kHz |
| Power supply voltage | 10 to 30 VDC (including 10% ripple (p-p)) |
| Current consumption | 10 mA max. |
| Indicator | Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output |
| Protection circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection. |
| Ambient air temperature | Operation and storage: −25 to 70°C (with no icing or condensation) |
| Ambient humidity | Operation and storage: 35% to 95% (with no condensation) |
| Temperature influence | ±15% max. of sensing distance at 23°C within a temperature range of −25 to 70°C |
| Voltage influence | ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Degree of protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Material Sensing Surface | Heat-resistant ABS |
Are you in search of an Omron E2E-S05N03-MC-B1 Inductive Proximity Sensor in Chennai? Look no further. The technical specifications for this Small Diameter Proximity Sensor include a M5 sensor head diameter, unshielded installation, 3mm sensing distance, M8 Connector model connection with DC Three-wires power source, NO switching, PNP output, 2 kHz response frequency, and operates on 10 to 30 VDC. It can detect ferrous metal objects, with the standard sensing object being iron measuring 9 × 9 × 1 mm. It also features an operation indicator (yellow). Check IndMALL Automation for the best prices.
