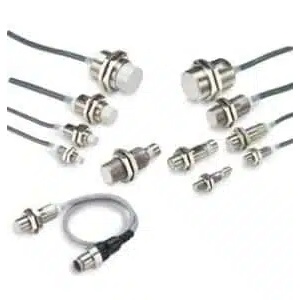

E2E-X3D1-N 2M - Omron 12mm Proximity Sensor
The Omron E2E-X3D1-N 2M is a high-performance M12 shielded proximity sensor featuring a 3 mm sensing distance and a durable DC 2-wire NO output. Built with a robust housing and a 2-meter pre-wired oil-resistant PVC cable, it ensures stable and accurate metal detection in industrial automation environments.
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | Proximity Sensors |
| Product | E2E-X3D1-N 2M |
Omron 12mm Proximity Sensor E2E-X3D1-N 2M Technical Specifications:
| Specification | Value |
|---|---|
| Size | M12 |
| Mounting type | Shielded |
| Sensing Distance | 3 mm |
| Setting distance | 0 to 2.4 mm |
| Output type | DC 2-wire |
| Operation mode | NO |
| Power supply | 12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC) |
| Connection method | Pre-wired Models(2 m) |
| Cable Specifications | PVC (oil-resistant) |
| Differential travel | 10% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard target | Iron, 12 × 12 × 1 mm |
| Response frequency | 1 kHz |
| Leakage current | 0.8 mA max. |
| Indicator | Operation indicator (red) and setting indicator (green) |
| Protection circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient temperature range | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Ambient humidity | Operating/storage: 35% to 95% (with no condensation) |
| Temperature influence | ±10% max. of sensing distance at 23°C in the temperature range of −25 to 70°C |
| Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength | 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection | IP67 |
🛠️ Get Quotes Instantly from Omron Vendors
Designed for precision and reliability, the Omron E2E-X3D1-N 2M sensor features a compact M12 cylindrical shielded body with an effective 3 mm sensing distance for ferrous targets. Suitable for detecting iron objects such as 12 × 12 × 1 mm plates, it operates with a DC 2-wire NO output, making it ideal for standard input devices in control panels.
Operating on a 12 to 24 VDC power supply (with a 10–30 VDC tolerance), this sensor offers fast response with a 1 kHz switching frequency. It includes load short-circuit protection and a surge suppressor for electrical stability. Dual LED indicators—red for operation and green for setting—provide intuitive diagnostics during installation and runtime. Current consumption is minimal at just 0.8 mA max., ensuring efficient system integration.
Encased in a rugged body with IP67 protection, the E2E-X3D1-N 2M sensor resists dust, oil, and water, and withstands harsh conditions including vibration and shock. It performs reliably across a wide temperature range from −25°C to 70°C. As part of the trusted Omron E2E Series, this sensor is ideal for factory automation, robotics, and general-purpose machine sensing.
