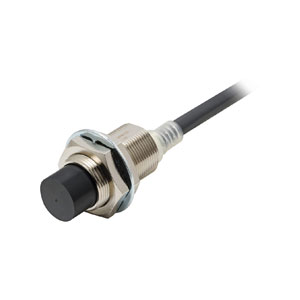

Omron E2E-X10MY2 2M Proximity Sensor
Omron E2E-X10MY2 2M is an M18 unshielded inductive proximity sensor with a 10 mm sensing distance and a 0 to 8 mm setting distance. It uses an AC 2-wire NC output, a pre-wired 2 m oil-resistant PVC cable, and a 24 to 240 VAC supply. Ferrous metal is the specified detectable object, with an iron 30 × 30 × 1 mm standard sensing object. Response frequency is 25 Hz, control-output load current is 5 to 100 mA, and differential travel is 10% max. of sensing distance. A red operation indicator, surge suppressor, and IP67 protection are specified. The E2E-X10MY2 2M is listed under AC proximity sensors from Omron industrial detection sensors.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X10MY2 2M |
Omron E2E-X10MY2 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M18 |
| Mounting | Unshielded |
| Sensing Distance | 10 mm |
| Setting Distance | 0 to 8 mm |
| Output Configuration | AC 2-Wire |
| Operation Mode | NC |
| Connection | Pre-wired 2 M Cable |
| Cable Specifications | PVC (oil-resistant) |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on page 11.) |
| Standard Sensing Object | Iron, 30 × 30 × 1 mm |
| Response Frequency | 25 Hz |
| Control Output Residual Voltage | 3 V max. |
| Control Output Load Current | 5 to 100 mA |
| Indicator | Operation indicator (red) |
| Protection Circuit | Surge suppressor |
| Ambient Temperature Range | Operating/Storage: −25 to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/storage: 35% to 95% (with no condensation) |
| Insulation Resistance | ±10% max. of sensing distance at 23°C in the temperature range of −25 to 70°C |
| Dielectric Strength | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Voltage Influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Material Case | Nickel-plated brass |
| Material Toothed Washer | Zinc-plated iron |
| Material Sensing Surface | PBT |
| Material Clamping Nut | Nickel-plated brass |
| Degree Of Protection | Pre-wired Models: IEC 60529 IP67, in-house standards: oil-resistant Connector Models: IEC 60529 IP67 |
| Weight | Approx. 130 g |
The Omron E2E-X10MY2 2M Proximity Sensor is an M18 unshielded inductive model with a 10 mm sensing distance and a 0 to 8 mm setting distance. It uses an AC 2-wire output with NC operation, a pre-wired 2 m oil-resistant PVC cable, and a 24 to 240 VAC supply. Ferrous metal is specified as the detectable object, with an iron 30 × 30 × 1 mm standard sensing object. Response frequency is 25 Hz, control-output load current is 5 to 100 mA, and differential travel is 10% max. of sensing distance. A red operation indicator and surge suppressor are specified. The listed voltage drop is 3 V max.
Operating conditions for the E2E-X10MY2 cover -25 to 70°C without icing or condensation, with humidity from 35% to 95%. Temperature influence is ±10% max. of sensing distance at 23°C across the rated range. Insulation resistance is 50 MΩ min. at 500 VDC, dielectric strength is 4,000 VAC for 1 minute, and voltage influence is ±1% max. within rated voltage ±15%. Nickel-plated brass and PBT are listed among the construction materials, while the pre-wired model carries IEC 60529 IP67 and oil-resistant protection. For another M18 AC 2-wire NC E2E sensor with a shorter 5 mm sensing distance and M12 connector, see E2E-X5Y2-M1.
