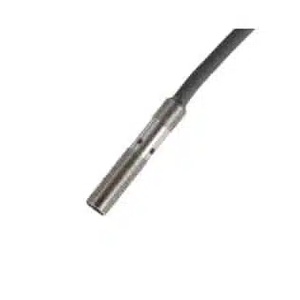

E2E-S05S12-WC-C1 2M - Omron M5 Proximity Sensor
E2E-S05S12-WC-C1 2M is a miniature Omron M5 Proximity Sensor designed for precise ferrous metal detection. With a 1.2 mm sensing range, NPN NO output, and robust oil-resistant PVC cable, the Omron E2E-S05S12-WC-C1 2M ensures high-speed response in compact, demanding industrial environments.
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | Proximity Sensors |
| Product | E2E-S05S12-WC-C1 2M |
Omron M5 Proximity Sensor E2E-S05S12-WC-C1 2M Technical Specifications:
| Specification | Value |
|---|---|
| Appearance | M5 |
| Mounting type | Shielded |
| Sensing Distance | 1.2 mm |
| Setting distance | 0 to 0.84 mm |
| Output type | NPN |
| Operation mode | NO |
| Power supply | 10 to 30 VDC (including 10% ripple (p-p)) |
| Connection method | Pre-wired Models (2 m) |
| Cable Specifications | PVC (oil-resistant) |
| Differential travel | 15% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard target | Iron, 4 × 4 × 1 mm |
| Response frequency | 4 kHz |
| Current consumption | 10 mA max |
| Indicator | Operation indicator: Yellow (complies with European standard EN60947-5-2) Lights during output. |
| Protection circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection |
| Ambient temperature range | Operation and storage: −25 to 70°C (with no icing or condensation) |
| Ambient humidity | Operation and storage: 35% to 95% (with no condensation) |
| Temperature influence | ±15% max. of sensing distance at 23°C within temperature range of −25 to 70°C |
| Voltage influence | ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength | 500 VAC, 50/60 Hz for 1 minute between current-carrying parts and case |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 500 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection | IP67 |
| Weight | Approx. 35 g |
🛠️ Get Quotes Instantly from Omron Vendors
Omron’s commitment to precision and durability is clearly reflected in compact sensing solutions like the Omron E2E-S05S12-WC-C1 2M. Designed for environments where space is limited but performance is critical, this Omron M5 Proximity Sensor offers high-speed response and long-term stability. As part of the trusted E2E series, the E2E S05S12 WC C1 2M upholds Omron’s global reputation for innovation in industrial automation.
The Omron E2E-S05S12-WC-C1 2M is a shielded proximity sensor with an M5 cylindrical design and 1.2 mm sensing distance. It operates on 10–30 VDC and provides an NPN NO output with a response frequency of 4 kHz. The oil-resistant PVC pre-wired cable (2 m) supports easy installation, while the sensor ensures IP67 protection, short-circuit protection, and surge suppression. View full specifications on the official Omron product page.
The E2E S05S12 WC C1 2M is well-suited for compact machinery, fixture automation, and miniature part detection. With strong resistance to vibration and shock, this Omron M5 Proximity Sensor delivers reliable operation in tight, rugged industrial setups. Designed with precision, protection, and performance in mind, the ideal choice remains the Omron E2E-S05S12-WC-C1 2M.
