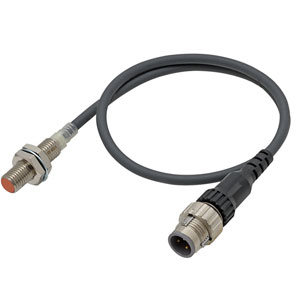

Omron E2E-X2D1-M1TGJ 0.3M Proximity Sensor
Omron E2E-X2D1-M1TGJ 0.3M is an M8 shielded inductive proximity sensor with a 2 mm sensing distance and a 0 to 1.6 mm setting distance. It uses a DC 2-wire NO configuration and a 0.3 m M12 pre-wired Smartclick connector with oil-resistant PVC cable. Power-supply voltage is 12 to 24 VDC. The standard sensing object is iron measuring 8 × 8 × 1 mm, differential travel is 15% max. of sensing distance, leakage current is 0.8 mA max., and response frequency is 1.5 kHz. Red and green indicators are specified for operation and setting status, together with surge suppression and load short-circuit protection. The E2E-X2D1-M1TGJ 0.3M belongs to the Proximity sensor range from Omron sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X2D1-M1TGJ 0.3M |
Omron E2E-X2D1-M1TGJ 0.3M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M8 |
| Mounting | Shielded |
| Sensing Distance | 2 mm |
| Setting Distance | 0 to 1.6 mm |
| Output Configuration | DC 2-wire |
| Operation Mode | NO |
| Connection | M12 Pre-wired Smartclick Connector, Length 0.3m |
| Cable Specifications | PVC (oil-resistant) |
| Power Supply Voltage | 12 to 24 VDC |
| Standard Target | Iron, 8 × 8 × 1 mm |
| Leakage Current | 0.8 mA max. |
| Differential Travel | 15% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Response Frequency | 1.5 kHz |
| Indicator | Operation indicator (red) and setting indicator (green) |
| Protection Circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient Temperature Range | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/storage: 35% to 95% (with no condensation) |
| Insulation Resistance | ±15% max. of sensing distance at 23°C in the temperature range of −25 to 70°C |
| Dielectric Strength | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | Destruction: 500 m/s2 10 times each in X, Y, and Z directions |
| Voltage Influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Degree Of Protection | IP67 |
The Omron E2E-X2D1-M1TGJ 0.3M Proximity Sensor is an M8 shielded inductive sensor with a 2 mm sensing distance and a 0 to 1.6 mm setting distance. Its switching arrangement is DC 2-wire with NO operation. Connection is through an M12 pre-wired Smartclick connector with a 0.3 m oil-resistant PVC cable, and the power-supply range is 12 to 24 VDC. The standard sensing object is iron measuring 8 × 8 × 1 mm. Leakage current is 0.8 mA max., differential travel is 15% max. of sensing distance, and response frequency is 1.5 kHz. Red and green indicators show operation and setting status on the sensor.
The listed protection circuit includes a surge suppressor and load short-circuit protection for the control and diagnostic output. Operating temperature is -25 to 70°C and storage temperature is -40 to 85°C without icing or condensation. Operating and storage humidity is 35% to 95% without condensation. Temperature influence is ±15% max. of sensing distance at 23°C across the -25 to 70°C range. Insulation resistance is 50 MΩ min. at 500 VDC, while dielectric strength is 1000 VAC for 1 minute. The sensor is rated IP67. Within the E2E-X2D1 model group, another supplied E2E-X2D1-M1G.
