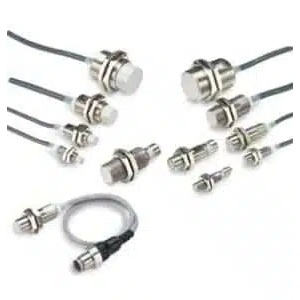

E2E-X2D1-M1G: Metal Detecting Proximity Sensor in Chennai
The Technical Specifications of Omron E2E-X2D1-M1G Metal Detecting Proximity Sensor are:
- Sensor Head (Dia): M8 (8mm)
- Installation: Flush | Shielded
- Sensing Distance: 2 mm
- Connection Method: M12 Connector Models
- Detectable object: Ferrous metal
- Switching: NO
- Output Configuration: DC 2 Wire
- Power supply voltage: 12 to 24 VDC
Omron E2E-X2D1-M1G Metal Detecting Proximity Sensor Technical Specification:
| Sensor Head (Dia) | M8 (8mm) |
| Installation | Flush | Shielded |
| Sensing Distance | 2 mm |
| Connection Method | M12 Connector Models |
| Switching | NO |
| Output Configuration | DC 2 Wire (No Self-diagnostic Output) |
| Differential travel | 15% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard sensing object | Iron, 8 × 8 × 1 mm |
| Response frequency | 1.5 kHz |
| Power supply voltage | 12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC) |
| Leakage current | 0.8 mA max |
| Indicator | Operation indicator (red) and setting indicator (green) |
| Protection circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient air temperature | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Ambient humidity | Operating/storage: 35% to 95% (with no condensation) |
| Voltage influence | ±1% max. of sensing distance at a rated voltage in the rated voltage ±15% range |
| Degree of protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Material Case | Stainless steel (SUS303) |
| Material Sensing surface | PBT |
Looking for the Omron E2E-X2D1-M1G Metal Detecting Proximity Sensor in Chennai? You’ve found it. This sensor has an M8 (8mm) head, flush and shielded installation, 2 mm sensing distance, M12 connectors, detects ferrous metal, has Normally Open (NO) switching, DC 2 Wire output, and uses 12 to 24 VDC power. Get the best prices for this sensor at IndMALL Automation.
