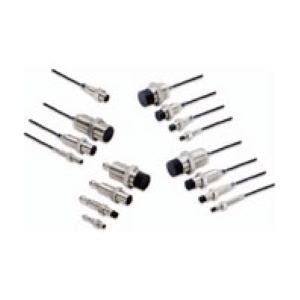

Omron E2B-M18LN10-M1-C1 Proximity Sensor
Omron E2B-M18LN10-M1-C1 combines an M18 unshielded inductive sensing body with a 10 mm sensing distance and long-body construction. It provides a DC 3-wire NPN output with NO operation through an M12 connector and works from 10 to 30 VDC. Ferrous metal is the specified detectable object, using a 30 × 30 × 1 mm standard sensing object. Response frequency is 400 Hz, current consumption is 10 mA max., and differential travel is 10% max. of sensing distance. A yellow operation indicator, reverse-polarity protection, surge suppression, short-circuit protection, and IP67 protection are listed. The E2B-M18LN10-M1-C1 appears under long-body proximity sensors from Omron sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2B-M18LN10-M1-C1 |
Omron E2B-M18LN10-M1-C1 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M18 |
| Mounting | Unshielded |
| Sensing Distance | 10 mm |
| Body Length | Long Body |
| Output | DC 3-wire |
| Output Configuration | NPN |
| Operation Mode | NO |
| Connection | M12 Connector |
| Power Supply Voltage | 10 to 30 VDC |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard Sensing Object | 30 × 30 × 1 mm |
| Response Frequency | 400 Hz |
| Current Consumption | 10 mA max |
| Indicator | Operation indicator (Yellow LED) |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient Temperature Range | Operation and storage : -25 to 70ºC (with no icing or condensation) |
| Ambient Humidity Range | Operation and Storage: 35 to 95% |
| Voltage Influence | ±1% max. of sensing distance in 24 VDC ±15% |
| Standard And Listings | (1) IP67 (IEC60529) (2) EMC (EN60947-5-2) |
| Material Case | Brass-nickel plated |
| Material Sensing Surface | PBT |
| Material Cable | Standard cable is 4 mm dia. PVC. |
| Material Clamping Nut | Brass-nickel plated |
The Omron E2B-M18LN10-M1-C1 Proximity Sensor combines an M18 unshielded inductive sensing body with a 10 mm sensing distance and long-body construction. It uses a DC 3-wire NPN output with NO operation through an M12 connector and operates from 10 to 30 VDC. Ferrous metal is the specified detectable object, with a 30 × 30 × 1 mm standard sensing object. Response frequency is 400 Hz, current consumption is 10 mA max., and differential travel is 10% max. of sensing distance. A yellow operation indicator is included, together with output reverse-polarity protection, power-source reverse-polarity protection, surge suppression, and short-circuit protection.
Environmental specifications for the E2B-M18LN10-M1-C1 cover -25 to 70°C during operation and storage without icing or condensation, while humidity is 35% to 95%. Voltage influence is ±1% max. of sensing distance at 24 VDC ±15%. IP67 according to IEC 60529 and EMC according to EN60947-5-2 are specified. Nickel-plated brass is listed for the case and clamping nut, PBT for the sensing surface, and PVC for the standard cable specification. The sensing distance is specified to decrease with non-ferrous metal. The 400 Hz response rate is stated with 10 mA max. current consumption. For another connector-based NPN NO E2B sensor with shielded sensing and a smaller 2 mm range, see E2B-S08LS02-MC-C1.
