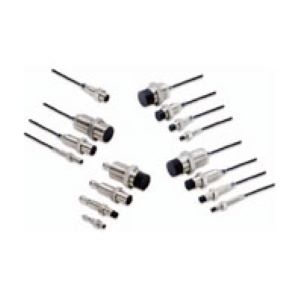

Omron E2B-M18LS05-M1-C1 Proximity Sensor
Omron E2B-M18LS05-M1-C1 is an M18 shielded inductive proximity sensor with a 5 mm sensing distance and long-body construction. It uses a DC 3-wire NPN output with NO operation through an M12 connector and operates from 10 to 30 VDC. Ferrous metal is the specified detectable object, using an 18 × 18 × 1 mm standard sensing object. Response frequency is 600 Hz, current consumption is 10 mA max., and differential travel is 10% max. of sensing distance. A yellow operation LED, output reverse-polarity protection, power-source reverse-polarity protection, surge suppression, short-circuit protection, and IP67 protection are listed. The E2B-M18LS05-M1-C1 is included among shielded proximity sensors from Omron automation sensors.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2B-M18LS05-M1-C1 |
Omron E2B-M18LS05-M1-C1 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M18 |
| Mounting | Shielded |
| Sensing Distance | 5 mm |
| Body Length | Long Body |
| Output | DC 3-wire |
| Output Configuration | NPN |
| Operation Mode | NO |
| Connection | M12 Connector |
| Power Supply Voltage | 10 to 30 VDC |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard Sensing Object | 18 × 18 × 1 mm |
| Response Frequency | 600 Hz |
| Current Consumption | 10 mA max |
| Indicator | Operation indicator (Yellow LED) |
| Protection Circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient Temperature Range | Operation and storage : -25 to 70ºC (with no icing or condensation) |
| Ambient Humidity Range | Operation and Storage: 35 to 95% |
| Voltage Influence | ±1% max. of sensing distance in 24 VDC ±15% |
| Standard And Listings | (1) IP67 (IEC60529) (2) EMC (EN60947-5-2) |
| Material Case | Brass-nickel plated |
| Material Sensing Surface | PBT |
| Material Cable | Standard cable is 4 mm dia. PVC. |
| Material Clamping Nut | Brass-nickel plated |
The Omron E2B-M18LS05-M1-C1 Proximity Sensor combines an M18 shielded inductive sensing body with a 5 mm sensing distance and long-body construction. It uses a DC 3-wire NPN output with NO operation through an M12 connector and operates from 10 to 30 VDC. Ferrous metal is the specified detectable object, with an 18 × 18 × 1 mm standard sensing object. Response frequency is 600 Hz, current consumption is 10 mA max., and differential travel is 10% max. of sensing distance. A yellow operation LED is included, together with output reverse-polarity protection, power-source reverse-polarity protection, surge suppression, and short-circuit protection.
Environmental limits for the E2B-M18LS05-M1-C1 cover -25 to 70°C for operation and storage without icing or condensation, with humidity from 35% to 95%. Voltage influence is ±1% max. of sensing distance at 24 VDC ±15%. IP67 according to IEC 60529 and EMC according to EN60947-5-2 are listed. Nickel-plated brass is specified for the case and clamping nut, PBT for the sensing surface, and PVC for the standard cable specification. The sensing distance is specified to decrease when detecting non-ferrous metal. The 600 Hz response applies to this shielded configuration. For another connector-based NPN NO E2B model with a compact M8 body and 2 mm sensing distance, see E2B-S08KN02-MC-C1.
