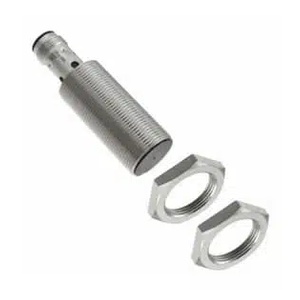

Omron E2B-M18KS08-M1-B1 - 3-wire PNP Proximity Sensor
The Omron E2B-M18KS08-M1-B1 is a shielded 3-wire PNP proximity sensor with a compact short-body brass housing, designed for accurate metal detection in industrial environments. Featuring an 8 mm sensing distance and PNP NO output, this sensor is equipped with an M12 connector for fast and secure integration.
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | Proximity Sensors |
| Product | E2B-M18KS08-M1-B1 |
Omron 3-wire PNP Proximity Sensor E2B-M18KS08-M1-B1 Technical Specifications:
| Specification | Value |
|---|---|
| Size | M18 |
| Mounting type | Shielded |
| Sensing Distance | 8 mm |
| Output type | PNP |
| Operation mode | NO |
| Power supply | 10 to 30 VDC. (including 10% ripple (p-p)) |
| Connection method | M12 connector |
| Body Length | Short body |
| Body material | Brass |
| Differential travel | 10% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard target | 30 × 30 × 1 mm |
| Response frequency | 400 Hz |
| Current consumption | 10 mA max |
| Indicator | Operation indicator (Yellow LED) |
| Protection circuit | Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Short-circuit protection |
| Ambient temperature range | Operation and storage : -25 to 70ºC (with no icing or condensation) |
| Ambient humidity | Operating: 35% to 95%, Storage: 35% to 95% |
| Temperature influence | ±10% max. of sensing distance at 23ºC within temperature range of -10 to 55ºC ±15% max. of sensing distance at 23ºC within temperature range of -25 to 70ºC |
| Voltage influence | ±1% max. of sensing distance in 24 V ±15% |
| Insulation resistance | 50 MΩ min. (at 500 VDC) between current carry parts and case |
| Dielectric strength | 1,000 VAC at 50/60 Hz for 1 min between current carry parts and case |
| Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y and Z directions |
| Shock resistance | 1,000 m/s2, 10 times each in X, Y and Z directions |
| Degree of protection | IP67 |
| Weight | Approx. 60 g |
🛠️ Get Quotes Instantly from Omron Vendors
Engineered for rugged reliability, the Omron E2B-M18KS08-M1-B1 3-wire PNP Proximity Sensor offers precise 8 mm sensing distance detection in a shielded short-body M18 cylindrical form. Its PNP NO output supports fast and reliable signal switching in industrial automation setups, while the M12 connector provides quick, error-free wiring in panel and field applications.
Powered by a 10 to 30 VDC supply, the sensor includes built-in protection features such as reverse polarity, surge suppressor, and short-circuit protection. It performs consistently at up to 400 Hz, making it ideal for general-purpose sensing tasks. The yellow LED indicator allows for easy visual confirmation of operation, and the IP67-rated brass housing ensures durability against water, oil, and dust ingress.
Part of the robust Omron E2B series, the E2B-M18KS08-M1-B1 is trusted in conveyor systems, packaging machinery, and industrial control panels. For applications requiring compact size and precise sensing, this sensor delivers proven Omron quality. View detailed specs and download the datasheet from the official product page: Omron E2B-M18KS08-M1-B1.
