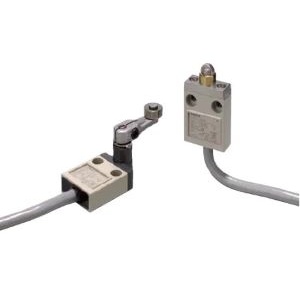

Omron D4C-3260 Limit Switch
The Omron D4C-3260 Limit Switch offers General-purpose Limit switches shape, actuator, SPDT contact form. Manufactured by Omron under the Omron Limit Switch category, this model belongs to the D4C Series.
| Brand | Omron |
| Product Type | Limit Switch |
| Product | D4C-3260 |
Omron D4C-3260 Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Shape/Structure | General-purpose Limit switches |
| Electrical ratings | 4 A at 30 VDC |
| Contact form | SPDT |
| Load | General load |
| Ambient temperature | Operating: -10 to 70 β (with no icing) |
| Ambient humidity | 35 to 95% RH |
| Shock resistance | Destruction: 1,000 m/s 2 max. Malfunction: 500 m/s 2 max. |
| Degree of protection | IP67 |
| Contact resistance (Initial value) | 300 mΞ© max. |
| Durability | Electrical: 200,000 operations min. (5 A at 125 VAC) Mechanical: 10 million operations min. |
| ctuator | Center roller lever 17.5 dia. x 7 Sintered stainless steel roller R38 |
| Cable specifications | VCTF oil-resistant cable, 4 cores, 3 m Nominal sectional area: 0.75 mm 2 Diameter: 7.6 dia. |
