D4C-3232 : Omron Industrial Limit Switch in Chennai
Technical Specifications of Omron Industrial Limit Switch D4C-3232:
Shape/Structure: General-purpose Limit switches
Actuator: Sealed roller plunger
Electrical ratings: 4 A at 30 VDC
Contact form: SPDT
Cable specifications: VCTF oil-resistant cable, 4 cores, 3 m
Degree of protection: IP67
Load: General load.
Omron Industrial Limit Switch D4C-3232 Technical Specifications:
|
Shape/Structure
|
General-purpose Limit switches |
| Ctuator | Sealed roller plunger 12 dia. x 4.4 Sintered stainless steel roller |
| Electrical ratings | 4 A at 30 VDC |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Contact form | SPDT |
| Load | General load |
| Inrush current | NC: 20 A max. NO: 10 A max. |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) |
| Ambient humidity | 35 to 95% RH |
| Pollution degree | 3 (EN60947-5-1) |
| Shock resistance | Destruction: 1,000 m/s2 max. Malfunction: 500 m/s2 max. |
| Classification of protection against electric shock | Class I (with earth wire) |
| Degree of protection | IP67 |

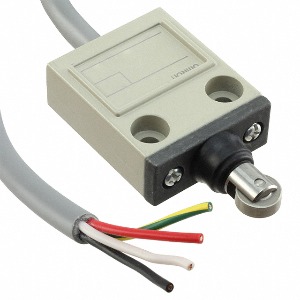

The Omron Industrial Limit Switch, model D4C-3232, features a general-purpose limit switch design with a sealed roller plunger actuator, suitable for various applications. It boasts an electrical rating of 4 A at 30 VDC and a SPDT contact form, complemented by a VCTF oil-resistant cable with 4 cores and a length of 3 meters. This robust switch is designed to handle general loads and offers an IP67 degree of protection, ensuring reliability in diverse environments. Available at IndMALL in Chennai the Omron D4C-3232 is an excellent choice for efficient and durable switching solutions.
