Omron D4C-1302 Limit Switch
Omron D4C-1302 is a general-purpose roller plunger limit switch with a 12 mm dia. × 4.4 mm sintered stainless-steel roller. It uses SPDT contacts and is rated at 5 A at 250 VAC and 4 A at 30 VDC for general load. IP67 protection and Class I construction with an earth wire are specified. The D4C-1302 Roller Plunger Switch belongs to the D4C Series within the Omron Roller Plunger Switch Range from Omron Switch Products. Frequency is 50/60 Hz, and maximum inrush current is specified at 20 A for NC and 10 A for NO.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D4C-1302 |
Omron D4C-1302 Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Shape Structure | General-purpose Limit switches |
| Ctuator | Roller plunger 12 dia. x 4.4 Sintered stainless steel roller |
| Contact Form | SPDT |
| Electrical Ratings | 5 A at 250 VAC/ 4 A at 30 VDC |
| Frequency | 50/60 Hz |
| Load | General load |
| Inrush Current | NC: 20 A max. NO: 10 A max. |
| Ambient Temperature | Operating: -10 to 70 ℃ (with no icing) |
| Ambient Humidity | 35 to 95% RH |
| Pollution Degree | 3 (EN60947-5-1) |
| Shock Resistance | Destruction: 1,000 m/s 2 max. Malfunction: 500 m/s 2 max. |
| Classification Of Protection Against Electric Shock | Class I (with earth wire) |
| Degree Of Protection | IP67 |
The Omron D4C-1302 Limit Switch is a general-purpose roller plunger model with a 12 mm dia. × 4.4 mm sintered stainless-steel roller and SPDT contacts. It is rated at 5 A at 250 VAC and 4 A at 30 VDC for general load. Frequency is 50/60 Hz, and maximum inrush current is 20 A for NC and 10 A for NO. Operating temperature ranges from -10 to 70°C with no icing, relative humidity is 35 to 95%, and pollution degree 3 is specified according to EN60947-5-1.

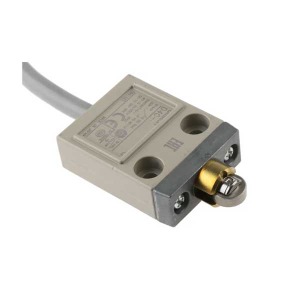

Destructive shock resistance is 1,000 m/s² maximum and malfunction shock resistance is 500 m/s² maximum. Class I construction with an earth wire and IP67 protection are listed. The most useful specification cluster for D4C-1302 is roller plunger, 12 × 4.4 mm sintered stainless-steel roller, SPDT, general load, 5 A at 250 VAC, 4 A at 30 VDC, and IP67. The supplied structured fields do not state cable length, contact resistance, insulation resistance, or durability, so those values are not taken from the older meta text. The row also does not identify a separate operation mechanism or pretravel value, so neither is assigned to this model. For another D4C model with the same listed roller-plunger dimensions and electrical ratings, see D4C-1402.
