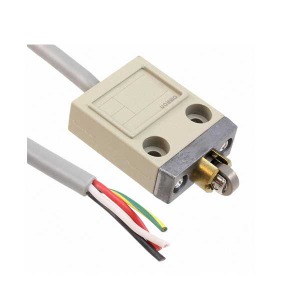

D4C-1303 : Omron 5A Limit Switch in Chennai
Technical Specifications of Omron 5A Limit Switch D4C-1303:
Shape/Structure: General-purpose Limit switches
Actuator: Cross roller plunger
Electrical ratings: 5 A at 250 VAC/ 4 A at 30 VDC
Contact form: SPDT
Ambient temperature: -10 to 70 ℃
Cable specifications: VCTF oil-resistant cable, 4 cores, 5 m
Degree of protection: IP67
Load: General load.
Omron 5A Limit Switch D4C-1303 Technical Specifications:
|
Shape/Structure
|
General-purpose Limit switches |
| Ctuator | Cross roller plunger 12 dia. x 4.4 Sintered stainless steel roller |
| Electrical ratings | 5 A at 250 VAC/ 4 A at 30 VDC |
| Contact resistance (Initial value) | 400 mΩ max. |
| Contact form | SPDT |
| Load | General load |
| Inrush current | NC: 20 A max. NO: 10 A max. |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) |
| Ambient humidity | 35 to 95% RH |
| Shock resistance | Destruction: 1,000 m/s2 max. Malfunction: 500 m/s2 max. |
| Durability | Electrical: 200,000 operations min. (5 A at 125 VAC) Mechanical: 10 million operations min. |
| Degree of protection | IP67 |
In Chennai IndMALL Offers Omron D4C-1303, a high-quality Omron 5A Limit Switch, featuring a cross roller plunger actuator and SPDT contact form. Designed for general-purpose use, it supports electrical ratings of 5 A at 250 VAC and 4 A at 30 VDC. Ensuring durability in diverse conditions, it operates within an ambient temperature range of -10 to 70 ℃ and boasts a VCTF oil-resistant cable with 4 cores, extending 5 meters. With an IP67 degree of protection, this switch is ideal for general load applications.
