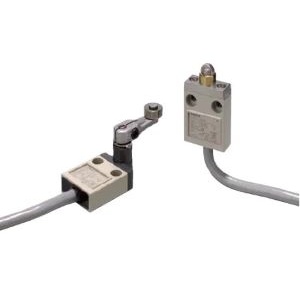

Omron D4C-1324 Limit Switch
Omron D4C-1324 is a high-sensitivity limit switch with a roller lever actuator for detecting small mechanical movement and machine position changes. The sensitive lever action suits applications where limited target movement must produce reliable switching, while the standard-load rating supports 5 A at 250 VAC and 4 A at 30 VDC. A 5 m VCTF oil-resistant cable provides extended routing from the sensing point and simplifies prewired installation around machine components. The D4C-1324 belongs to the D4C Series within the high-sensitivity roller lever switch range from Omron industrial control products for position, motion, and end-of-travel sensing where small actuator movement and longer cable reach are useful.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | D4C-1324 |
Omron D4C-1324 Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Electrical Ratings | 5 A at 250 VAC, 4 A at 30 VDC |
| Load | Standard load |
| Cable Specifications | VCTF oil- resistant cable |
| Cable Length | 5 m |
| Actuator | Roller lever, high-sensitivity |
The Omron D4C-1324 Limit Switch uses a high-sensitivity roller lever for detecting small mechanical movement and position changes. The sensitive lever actuator is suited to applications where limited target travel must still produce dependable switching. The supplied product information specifies a standard-load rating of 5 A at 250 VAC and 4 A at 30 VDC. A 5 m VCTF oil-resistant cable provides a prewired connection and allows the switch to be mounted some distance from the control wiring point. The roller lever provides rolling contact with moving targets, helping support repeated actuation where direct plunger contact is not preferred.
The D4C-1324 is particularly relevant where actuator sensitivity and cable reach are the main selection factors. The 5 m cable can simplify routing along conveyors, machine frames, and compact mechanical assemblies, while the oil-resistant VCTF construction supports cable placement around lubricated components. The source identifies this model specifically as a high-sensitivity roller-lever version and does not provide the broader environmental or durability specifications listed for some other D4C models in the same file. For a related D4C model using a center roller lever with the same 5 m oil-resistant cable and standard-load rating, see the D4C-1360 model.
