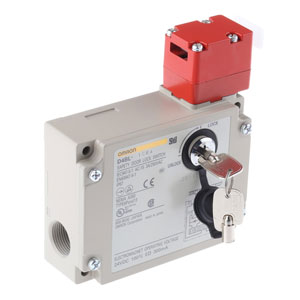

Omron D4BL-K2 Safety Door Switch
The Omron D4BL-K2 Safety Door Switch provides Vertical mounting, and a Type 2 interlock featuring Low level coded coding for enhanced operator protection. Built to withstand harsh industrial environments, it offers a robust IP67 protection rating, supports 0.05 to 0.5 m/s operating speed, and ensures dependable performance with a 20 mm min direct opening travel. With 50 mΞ© max. contact resistance, 300 V rated insulation voltage, 100 MΞ© min. insulation resistance, and a 2 Γ 2 mm min contact gap, it delivers safe and consistent operation. Manufactured by Omron and listed under Omron Safety Door Switch solutions, this model belongs to the D4BL Series.
| Brand | Omron |
| Product Type | Safety Door Switch |
| Model Number | D4BL-K2 |
Omron D4BL-K2 Safety Door Switch - Technical Specifications
| Specification | Value |
|---|
| Type | Vertical mounting |
| Interlock type | Type 2 |
| Coding level | Low level coded |
| Degree of protection | IP67 |
| Operating speed | 0.05 to 0.5 m/s |
| Direct opening force | 19.61 N min. |
| Direct opening travel | 20 mm min |
| Contact resistance | 50 mΞ© max. |
| Rated insulation voltage (Ui) | 300 V |
| Rated frequency | 50/60 Hz |
| Insulation resistance | 100 MΞ© min. |
| Contact gap | 2 Γ 2 mm min |
| Vibration resistance | Malfunction 10 to 55 Hz, 0.35 mm single amplitude |
| Shock resistance | Destruction 1,000 m/s2 min.
Malfunction 300 m/s2 min. |
| Ambient operating temperature | β10 to 55Β°C |
| Ambient operating humidity | 95% max |
| Weight | Approx. 800 g |
