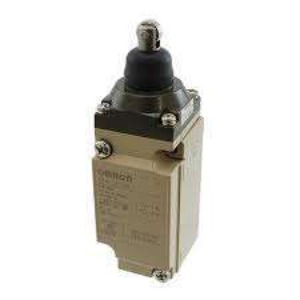

Omron D4A-3112N Limit Switch
The Omron D4A-3112N Limit Switch offers General-purpose Limit switches shape, Snap action operation mechanism, SPST-NO/SPST-NC contact form. Manufactured by Omron under the Omron Limit Switch category, this model belongs to the D4A Series.
| Brand | Omron |
| Product Type | Limit Switch |
| Product | D4A-3112N |
Omron D4A-3112N Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Shape/Structure | General-purpose Limit switches |
| Contact form | SPST-NO/SPST-NC |
| Load | General load |
| Inrush current | NC: 30 A max. NO: 20 A max. |
| Ambient temperature | Operating: -20 to 100 β |
| Ambient humidity | 35 to 95% RH |
| Pollution degree | 3 |
| Shock resistance | Destruction: 1,000 m/s 2 max. |
| Degree of protection | IP67 NEMA Type1, 2, 3, 4, 4X, 5, 6P, 12, 13 |
| Contact resistance (Initial value) | 25 mΞ© max. |
| Durability | Electrical: 1,000,000 operations min. (10 A at 125 VAC ) |
| ctuator | Spring wire Stainless steel wire rod |
| Operating mechanism | Snap action |
