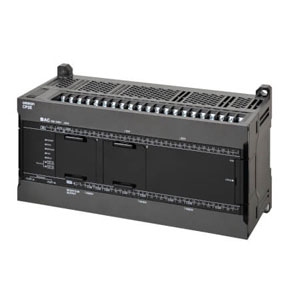

Omron CP2E-N60DR-A Programmable Logic Controller
The Omron CP2E-N60DR-A Programmable Logic Controller (PLC) offers a compact CPU Units with 60 points, featuring 36 inputs, and 24 Relay outputs for reliable control. With a program capacity of 10K steps and 16K words of data memory, it delivers stable and efficient automation performance. Operating at 100 to 240 VAC 50/60 Hz supply voltage, the unit supports 85 to 264 VAC operating range, ensuring wide compatibility. Power consumption is 0.44 A at 5 V and 0.13 A at 24 V. Manufactured by Omron, part of the Omron Programmable Logic Controller range, available under the Omron CP2E Series.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CP2E-N60DR-A |
Omron CP2E-N60DR-A Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Number of points | CPU Units with 60 points |
| Inputs | 36 points |
| Outputs | 24 points |
| Output type | Relay |
| Program capacity | 10K steps (FB capacity: 10K steps) |
| Data memory capacity | 16K words |
| Current consumption 5 VDC | 0.44 A |
| Current consumption 24 VDC | 0.13 A |
| Dimensions (H Γ D Γ W) | 90mm *1 Γ 80mm *2 Γ 195mm |
| Supply voltage | 100 to 240 VAC 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Power consumption | 50 VA/100 VAC max., 70 VA/240 VAC max. |
| Inrush current | 120 VAC, 20 A for 8 ms max. for cold start at room temperature, 240 VAC, 40 A for 8 ms max. for cold start at room temperature |
| Insulation resistance | 20 MΞ© min. (at 500 VDC) between the external AC, terminals and GR terminals |
| Power interrupt time | 10 ms min. |
| Altitude | 2,000 m max |
| Atmosphere | No corrosive gas |
| Ambient humidity | 10% to 90% |
| "Ambient operating temperature" | 20 to 60Β°C |
| Ambient storage temperature | -20 to 75Β°C (excluding battery) |
| Weight | 780g max. |
Omron has established itself as a trusted automation brand worldwide, delivering innovative solutions that meet the evolving demands of modern industry. The CP2E-N60DR-A is part of Omronβs CP2E series, specifically engineered for applications requiring higher input-output capacity and robust control. Designed for industrial engineers and OEMs who need scalable control logic in compact form factors, the Omron CP2E-N60DR-A Programmable Logic Controller offers flexibility, precision, and long service life. It supports large programs, complex sequences, and advanced control, ensuring reliable system integration in automotive, packaging, and manufacturing environments.
At its core, the CP2E-N60DR-A provides 36 input channels and 24 relay outputs, enabling precise signal handling for diverse industrial processes. This expanded I/O capacity makes it suitable for large-scale machines and production lines. Its program capacity of 10K steps and data memory of 16K words allow engineers to implement advanced control strategies without limitations. By combining speed with reliability, the Omron Micro PLC ensures consistent logic execution, reducing downtime and increasing efficiency in automated workflows.
The Omron PLC CP2E-N60DR-A operates at 24 VDC, with a safe voltage tolerance between 20.4 to 26.4 VDC, consuming a maximum of 20W. It can handle surge currents up to 30A, protecting circuits against unexpected load variations. The compact sizeβmeasuring 90 Γ 80 Γ 150 mm and weighing 640 gβensures easy panel integration even where space is limited. Designed to withstand environmental challenges, this Omron Micro Logic system operates reliably in temperatures ranging from -20Β°C to 60Β°C and up to 2,000 meters altitude. With proven insulation resistance and vibration tolerance, it ensures continuous operation in rugged factory conditions.
One of the standout benefits of the CP2E N60DR A is its ability to optimize maintenance and reduce troubleshooting time. Built-in diagnostic tools, stable communication protocols, and energy-efficient operation support long-term cost savings for manufacturers. The relay outputs are engineered for durability, while the input handling ensures stable signal recognition across sensors and actuators. These design enhancements make it a strong choice for production engineers seeking both reliability and scalability in a single package. Industrial wholesalers, dealers, and distributors often recommend the Omron CP2E PLC to OEMs and factory operators for projects demanding flexible yet powerful logic control.
In practical use, the Omron CP2E-N60DR-A finds applications in conveyor systems, packaging machinery, automotive assembly, and material handling systems. Engineers appreciate its ability to seamlessly integrate with HMIs, drives, and sensors, simplifying system design and reducing downtime during commissioning. The PLCβs modular programming support ensures easy upgrades and expansion, making it a future-proof investment for factories adapting to Industry 4.0 standards. Maintenance teams benefit from its rugged design, which withstands dust, temperature variations, and vibration, ensuring minimal disruption to production schedules.
Industrial buyers searching for robust logic controllers consistently value the Omron CP2E-N60DR-A for its efficiency, durability, and high I/O count. It is widely adopted by OEMs and system integrators in India and globally for scalable control applications. Commonly searched terms like Omron CP2E N60DR A, Omron Micro Logic Controller, Omron CP2E-N60DR-A Programmable Logic Controller, and CP2E N60DR A reflect the strong demand for this model across industries. By choosing this Omron Micro PLC, engineers secure a reliable control system that delivers high performance in demanding automation setups while ensuring long-term value in industrial environments.
