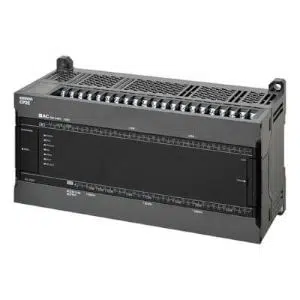

CP2E-E60DR-A - Omron PLC 60 Input/Output Configuration
CP2E-N14DR-A is an Omron Compact Programmable Logic Controller (PLC) designed for efficient data collection and Machine-to-Machine communication in compact automation systems.
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | PLC |
| Product | CP2E-E60DR-A |
🛠️ Get Quotes Instantly from Omron Vendors
| Specification | Value |
|---|---|
| Number of points | CPU Units with 60 points |
| Inputs | 36 points |
| Outputs | 24 points |
| Output type | Relay |
| Program capacity | 4K steps (FB capacity: 4K steps) |
| Data memory capacity | 4K words |
| Current consumption 5 VDC | 0.16 A |
| Current consumption 24 VDC | 0.13 A |
| Dimensions (H × D × W) | 90mm *1 × 80mm *2 × 195mm |
| Supply voltage | 100 to 240 VAC 50/60 Hz |
| Operating voltage range | 85 to 264 VAC |
| Power consumption | 50 VA/100 VAC max., 70 VA/240 VAC max. |
| Inrush current | 120 VAC, 20 A for 8 ms max. for cold start at room temperature 240 VAC, 40 A for 8 ms max. for cold start at room temperature |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between the external AC, terminals and GR terminals |
| Power interrupt time | 10 ms min |
| Altitude | 2,000 m max |
| Atmosphere | No corrosive gas |
| Ambient humidity | 10% to 90% |
| "Ambient operating temperature" | 20 to 60°C |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Weight | 780g max. |
Obtain a Quote for Omron PLC 60 Input/Output Configuration CP2E-E60DR-A at economical prices. Specifications Overview for CP2E-E60DR-A reveals CPU Units with 60 points,36 points inputs and 24 points Relay outputs. It features a program capacity of 4K steps (FB capacity: 4K steps) and a data memory capacity of 4K words. The PLC operates at 100 to 240 VAC 50/60 Hz with an operating voltage range of 85 to 264 VAC and a power consumption of 50 VA/100 VAC max., 70 VA/240 VAC max.. Its current consumption is 0.16 A at 5 VDC and 0.13 A at 24 VDC. The dimensions are 90mm *1 × 80mm *2 × 195mm. It has an insulation resistance of 20 MΩ min. (at 500 VDC) between the external AC, terminals and GR terminals, and can handle power interruptions of 10 ms min. at altitudes up to 2,000 m max with No corrosive gas. Take the First Step with a Quote for your requirement of Omron PLC 60 Input/Output Configuration. Our commitment to better pricing and exceptional support sets us apart from other Competitors..
