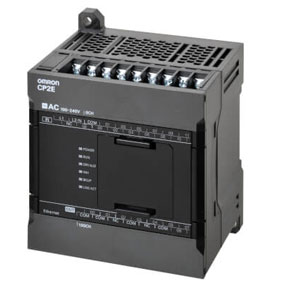

Omron CP2E-N14DT1-D Programmable Logic Controller
The Omron CP2E-N14DT1-D PLC CPU Unit provides 14 built-in I/O points through 8 inputs and 6 transistor outputs for compact machine-control applications. This Programmable Logic Controller offers a 10K-step program capacity and 16K words of data memory, supporting control sequences and operating information within the CPU platform. It operates from a 24 VDC supply with a permitted operating range of 20.4 to 26.4 VDC. Current consumption is 0.22 A at 5 V and 0.02 A at 24 V. The CP2E-N14DT1-D combines controller processing with integrated transistor outputs and belongs to the compact transistor PLC range supporting Omron machine automation.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CP2E-N14DT1-D |
Omron CP2E-N14DT1-D Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Number of points | CPU Units with 14 points |
| Inputs | 8 points |
| Outputs | 6 points |
| Output type | Transistor (sourcing) |
| Program capacity | 10K steps (FB capacity: 10K steps) |
| Data memory capacity | 16K words |
| Current consumption 5 VDC | 0.22 A |
| Current consumption 24 VDC | 0.02 A |
| Dimensions (H × D × W) | 90mm *1 ×80mm *2 × 86mm |
| Supply voltage | 24 VDC |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 13W max. |
| Inrush current | 24 VDC, 30A for 20 ms max. for cold start at room temperature |
| Insulation resistance | Not csolated between primary and secondary DC, power supplies |
| Power interrupt time | 2 ms min. |
| Altitude | 2,000 m max |
| Atmosphere | No corrosive gas |
| Ambient humidity | 10% to 90% |
| "Ambient operating temperature" | 20 to 60°C |
| Ambient storage temperature | -20 to 75°C (excluding battery) |
| Weight | 335g max |
The Omron CP2E-N14DT1-D delivers compact automation performance with a CPU unit supporting 14 I/O points, comprising 8 digital inputs and 6 transistor outputs (sourcing). With a program capacity of 10K steps and 16K-word data memory, this PLC ensures stable logic execution across various control applications. Ladder programming is supported for ease of use and integration in basic control systems.
Operating at 24 VDC, the CP2E-N14DT1-D is built to handle inrush currents up to 30A during cold starts and operates within a voltage range of 20.4 to 26.4 VDC. With 13W max power consumption, and 0.22 A at 5 VDC and 0.02 A at 24 VDC current draw, it offers energy efficiency in a small footprint. The controller’s dimensions (90 × 80 × 86 mm) and 335g weight make it suitable for compact installations and control cabinets.
Trusted for performance in harsh industrial environments, the Omron CP2E-N14DT1-D PLC operates in temperatures from –20°C to 60°C, with 2 ms power interrupt tolerance and altitude support up to 2,000 m. Although not electrically isolated between power supply paths, it is highly suitable for environments free from corrosive gases.
