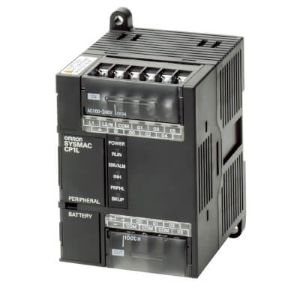

Omron CP1L-L14DT1-D Programmable Logic Controller
The Omron CP1L-L14DT1-D Programmable Logic Controller (PLC) is a compact CPU Unit built with 14 I/O points, offering 8 inputs and 6 transistor outputs. Powered by a DC supply, it provides a 5K-step memory capacity along with 100 kHz counters and 100 kHz pulse outputs for accurate control. The built-in USB port enables fast programming, making it suitable for small automation equipment. Manufactured by Omron within the Omron Programmable Logic Controller range of the Omron CP1L Series.
| Brand | Omron |
| Product Type | Programmable Logic Controller |
| Model Number | CP1L-L14DT1-D |
| Specification | Value |
|---|---|
| Control method | Stored program method |
| I/O control method | Cyclic scan with immediate refreshing |
| Power Supply | 24 VDC |
| Output method | Transistor output (sourcing) |
| Inputs | 8 |
| Outputs | 6 |
| Program language | Ladder diagram |
| Operating voltage range | 20.4 to 26.4 VDC |
| Power consumption | 13 W max. |
| Insulation resistance | No insulation between primary and secondary for DC power supply |
| Dielectric strength | No insulation between primary and secondary for DC power supply |
| Noise immunity | Conforms to IEC 61000-4-4. 2 kV (power supply line) |
| Vibration resistance | Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes Γ 10 sweeps = total time of 80 minutes) |
| Shock resistance | Conforms to JIS C60068-2-27. 147 m/s2 3 times each in X, Y, and Z directions |
| Ambient operating temperature | 0 to 55Β°C |
| Ambient humidity | 10% to 90% (with no condensation) |
| Ambient operating environment | No corrosive gas |
| Ambient storage temperature | β20 to 75Β°C (Excluding battery.) |
| Power holding time | 2 ms min. |
| Function blocks | Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST) |
| Instruction length | 1 to 7 steps per instruction |
| Instructions | Approx. 500 (function codes: 3 digits) |
| Instruction execution time | Basic instructions: 0.55 ΞΌs min. Special instructions: 4.1 ΞΌs min |
| Common processing time | 0.4ms |
| Inrush current * | 30 A max. (for cold start at room temperature) 20 ms max. |
