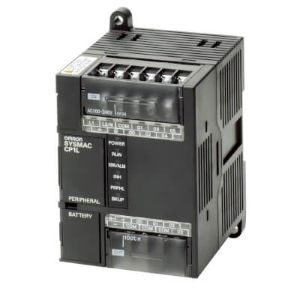

The Omron CP1L-L10DT1-D PLC CPU Unit provides 6 digital inputs and 4 transistor outputs for entry-level machine automation and positioning applications. This Programmable Logic Controller offers a 5K-step program capacity together with 100 kHz high-speed counters and 100 kHz pulse outputs for fast counting, positioning, and logic-control tasks. Its DC-powered architecture includes a built-in USB port for programming and configuration, supporting straightforward integration into compact machinery. The transistor outputs provide electronic switching for connected automation devices. The CP1L-L10DT1-D combines compact processing with high-speed pulse control and forms part of the machine control PLC range within Omron industrial control systems.
No insulation between primary and secondary for DC power
supply
Dielectric strength
No insulation between primary and secondary for DC power
supply
Noise immunity
Conforms to IEC 61000-4-4. 2 kV (power supply line)
Vibration resistance
Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for
80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes)
Shock resistance
Conforms to JIS C60068-2-27. 147 m/s2 3 times each in X, Y, and Z directions
Ambient operating temperature
0 to 55°C
Ambient humidity
10% to 90% (with no condensation)
Ambient operating environment
No corrosive gas
Ambient storage temperature
−20 to 75°C (Excluding battery.)
Power holding time
2 ms min.
Function blocks
Maximum number of function block definitions: 128 Maximum number of instances: 256; Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length
1 to 7 steps per instruction
Instructions
Approx. 500 (function codes: 3 digits)
Instruction execution time
Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min
Common processing time
0.4ms
Inrush current *
30 A max. (for cold start at room temperature)
20 ms max.
