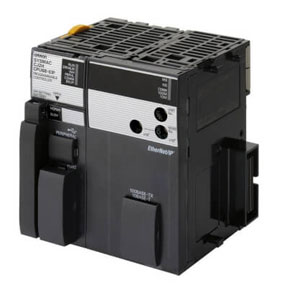

Omron CJ2H-CPU66 Programmable Logic Controller

The Omron CJ2H-CPU66 PLC CPU Unit provides high-speed processing and substantial program capacity for demanding industrial automation systems. This Programmable Logic Controller supports up to 2,560 I/O points and 40 units across 3 Expansion Racks, allowing additional control modules to be incorporated into large machine architectures. It provides a 100K-step program capacity and 160K words of data memory, including 32K words of DM and 32K words of EM across 4 banks. Its 0.016 μs LD instruction execution supports rapid processing of complex machine-control sequences. The CJ2H-CPU66 combines high-speed execution with scalable modular control and belongs to the industrial PLC controller range supporting Omron automation.

Brand	Omron
Product Type	Programmable Logic Controller
Model Number	CJ2H-CPU66

Specification	Value
Program capacity	150K steps
Current Consumption	5 VDC, 0.42 A
Ambient operating temperature	0 to 55°C
Ambient humidity	10% to 90%
Ambient storage temperature	−20 to 70°C
Data memory capacity	352K words
Logic execution time	0.016 µs
Overhead Processing Time	100 μs
Max. number of expansion units	40 Units
Max. number of local I/O points	2560
Communication port(s)	Serial RS-232C, USB
CPU Unit Dimensions (H × D × W)	90 mm × 65 mm × 49 mm
Weight	190 g
