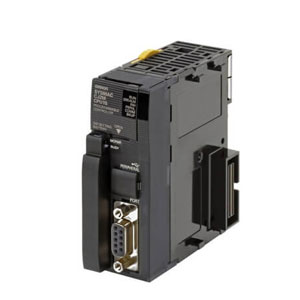

Omron CJ2H-CPU68-EIP Programmable Logic Controller

The Omron CJ2H-CPU68-EIP PLC CPU Unit integrates built-in EtherNet/IP communication with extensive program and data capacity for large networked automation systems. This Programmable Logic Controller supports up to 2,560 I/O points and 40 units across 3 Expansion Racks, providing scalable control for complex machine architectures. It offers a 250K-step program capacity and 512K words of data memory, including 32K words of DM and 32K words of EM across 15 banks. Its 0.016 μs instruction execution supports rapid logic processing, while EtherNet/IP provides communication with compatible industrial network devices. The CJ2H-CPU68-EIP combines high-speed control with integrated networking and belongs to the Ethernet-enabled PLC range supporting Omron automation.

Brand	Omron
Product Type	Programmable Logic Controller
Model Number	CJ2H-CPU68-EIP

Specification	Value
Program capacity	400K steps
Current Consumption	5 VDC, 0.82 A
Ambient operating temperature	0 to 55°C
Ambient humidity	10% to 90%
Ambient storage temperature	−20 to 70°C
Data memory capacity	832K words
Logic execution time	0.016 µs
Overhead Processing Time	200 μs
Max. number of expansion units	40 Units
Max. number of local I/O points	2560
Communication port(s)	EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB
CPU Unit Dimensions (H × D × W)	90 mm × 65 mm × 80 mm
Weight	280 g
