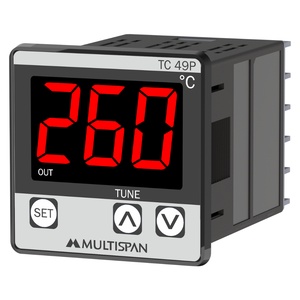

TC-49-A2-N1-R - Multispan Temperature Controller
Multispan TC-49-A2-N1-R Temperature Controller supports J/K input, Relay or SSR output, PID control, and RS-485 communication. The TC-49-A2-N1-R Multispan Temperature Controller belongs to the Multispan Temperature Controller category and TC Series, featuring PID Auto-Tuning, IP65 front protection, Relay or SSR output, and RS-485 Modbus communication with 100-270V AC auxiliary supply.
| Brand | Multispan |
| Product Type | Temperature Controller |
| Model Number | TC-49-A2-N1-R |
TC-49-A2-N1-R Multispan Temperature Controller - Technical Specifications
| Specification | Value |
|---|---|
| Input | J/K |
| Output | Relay || SSR |
| Auxillary Supply | 100-270V AC |
| Display Color | Red |
| Size | 48x48x70(HxWxD)mm |
| Supply Voltage | 100 to 270V AC, 50-60Hz |
| Power Consumption (VA Rating) | 4VA @ 230V AC MAX |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | Upto 95% RH |
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
| Input Range | J : 0 to 600°C K : 0 to 999°C |
| Resolution | 1°C |
| Indication Accuracy | ±1% of FSD ± 1°C |
| Display | 3-Digit, 7-Segment, 0.8” RED |
| Keys | SET, INC, DEC |
| Panel Cutout (mm) | 45 (H) x 45 (W) |
| Heating | 1. PID control with Auto-Tuning 2. ON-OFF Control |
| Relay | 1 Nos |
| Relay Type | 1C/O (NO-C-NC) |
| Rating | 10A, 230V AC / 28V DC |
| SSR Output Signal | 12V DC, 30mA DC |
| Analog Output | 4 to 20mA DC/0 to 10V DC (Factory Set) |
| Transmitter supply | 24V DC |
| Modbus Communication | RS-485 |
The TC-49-A2-N1-R is a Multispan Temperature Controller designed for industrial automation temperature monitoring and control applications. This TC Series controller supports J/K thermocouple inputs, Relay or SSR output options, PID Auto-Tuning functionality, and RS-485 Modbus communication. The TC-49-A2-N1-R Temperature Controller provides J/K input compatibility, PID Auto-Tuning, RS-485 communication, and IP65 front protection. The controller is suitable for maintaining stable temperature control in industrial processes where accuracy and repeatability are important.
The TC-49-A2-N1-R Temperature Controller is commonly used in conveyors, packaging machines, assembly systems, ovens, furnaces, and industrial automation equipment. The TC Series supports PID control and ON-OFF control modes for maintaining stable process temperatures. Relay outputs, SSR outputs, analog output capability, and Modbus communication support reliable temperature control and process management. These functions help improve temperature regulation, process efficiency, and operational reliability across manufacturing and process industries.
Multispan TC-49-A2-N1-R Temperature Controller combines thermocouple input support, PID control capability, communication features, and industrial-grade protection in a compact 48x48mm housing. The TC-49-A2-N1-R Temperature Controller supports accurate temperature indication with ±1% FSD accuracy and operates with 100-270V AC supply voltage. Multispan controllers are widely used in industrial temperature monitoring applications where dependable operation, process consistency, and controlled heating performance are required across different industrial environments.
