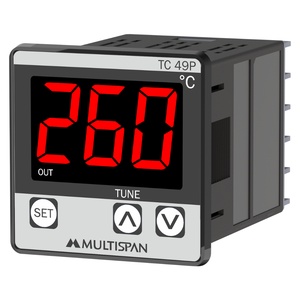

TC-49-A2-N2-W - Multispan Temperature Controller

Multispan TC-49-A2-N2-W Temperature Controller supports Pt-100 input, Relay or SSR output, PID control, and RS-485 communication. The TC-49-A2-N2-W Multispan Temperature Controller belongs to the Multispan Temperature Controller category and TC Series, featuring PID Auto-Tuning, IP65 front protection, Relay or SSR output, and RS-485 Modbus communication with 100-270V AC auxiliary supply.

Datasheet

Brand	Multispan
Product Type	Temperature Controller
Model Number	TC-49-A2-N2-W

TC-49-A2-N2-W Multispan Temperature Controller - Technical Specifications

Specification	Value
Input	Pt-100
Output	Relay \|\| SSR
Auxillary Supply	100-270V AC
Display Color	White
Size	48x48x70(HxWxD)mm
Supply Voltage	100 to 270V AC, 50-60Hz
Power Consumption (VA Rating)	4VA @ 230V AC MAX
Operating Temp.	0°C to 55°C
Relative Humidity	Upto 95% RH
Protection Level	IP-65 (Front side) As per IS/IEC 60529 : 2001
Input Range	J : 0 to 600°C K : 0 to 999°C
Resolution	1°C
Indication Accuracy	±1% of FSD ± 1°C
Display	3-Digit, 7-Segment, 0.8” RED
Keys	SET, INC, DEC
Panel Cutout (mm)	45 (H) x 45 (W)
Heating	1. PID control with Auto-Tuning 2. ON-OFF Control
Relay	1 Nos
Relay Type	1C/O (NO-C-NC)
Rating	10A, 230V AC / 28V DC
SSR Output Signal	12V DC, 30mA DC
Analog Output	4 to 20mA DC/0 to 10V DC (Factory Set)
Transmitter supply	24V DC
Modbus Communication	RS-485
