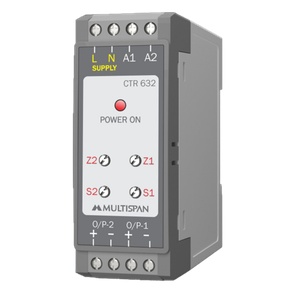

Multispan CTR-63-A2-V-01: Current Transducer
The Multispan CTR-632 Process Control Instrument offers 0-1A AC input, 0-10V DC Output, Optical - 3 way
type. Manufactured by Multispan under the Multispan Process Control Instrument category, this model belongs to the MI Series.
| Brand | Multispan |
| Product Type | Current Transducer |
| Model Number | CTR-63-A2-V-01 |
Multispan Current Transducer CTR-63-A2-V-01 Technical Specifications
| Specification | Value |
|---|---|
| Input | 0-1A AC |
| CMRR | >120dp (Typical) |
| Temperature Co-efficient | <100 PPM |
| Size (mm) | 76 (H) X 28 (W) X 85 (D) |
| Auxiliary Supply | 100-270V AC |
| Response Type | <150ms |
| Output Inpedance | <500Ξ© |
| Auxiliary Voltage | 100 to 270V AC,50/60Hz |
| Power Consumption ( VA Rating ) | 4VA @230V AC |
| Isolation Type | Optical - 3 way |
| Isolation between supply, input & Output | At least 1.5KV AC for 1 min |
| Output 1 | 0-10V DC |
