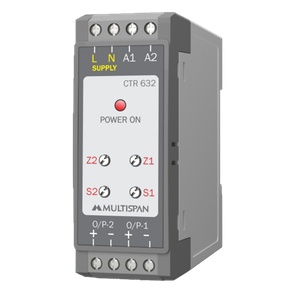

Multispan CTR-63-24-V-01: Current Transducer

The Multispan CTR-63-24-V-01 Current Transducer converts 0–1A AC input into 0–10V DC output using 24V DC auxiliary supply with optical 3-way isolation designed for industrial monitoring accuracy. The CTR-63-24-V-01 belongs to Multispan CTR series used in electrical measurement and control systems. It ensures fast response under 150ms for stable signal conversion in automation panels.

Datasheet

Brand	Multispan
Product Type	Current Transducer
Model Number	CTR-63-24-V-01

Multispan Current Transducer CTR-63-24-V-01 Technical Specifications

Specification	Value
Input	0-1A AC
CMRR	>120dp (Typical)
Temperature Co-efficient	<100 PPM
Size (mm)	76 (H) X 28 (W) X 85 (D)
Auxiliary Supply	24V DC
Response Type	<150ms
Output Inpedance	<500Ω
Auxiliary Voltage	100 to 270V AC,50/60Hz
Power Consumption ( VA Rating )	4VA @230V AC
Isolation Type	Optical - 3 way
Isolation between supply, input & Output	At least 1.5KV AC for 1 min
Output 1	0-10V DC
