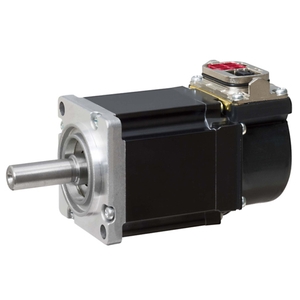

Mitsubishi HK-KT1M3WB - Servo Motors
Technical Specifications of Mitsubishi Servo Motors HK-KT1M3WB:
| Brand | Mitsubishi |
| Product Type | Servo Motors |
| Product | HK-KT1M3WB |
Mitsubishi Servo Motors HK-KT1M3WB Technical Specifications:
| Specification | Value |
|---|---|
| Series | MELSERVO-J5 |
| Type | HK-KT |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 0,15 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 0,48 |
| Maximum Torque (Nm) | 1,7 |
| Rated Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 102 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 67108864 |
| Maximum Speed (rpm) | 6700 |
| Protection Class | IP67 |
| Encoder Type | 26-BIT |
| Depth (mm) | 140,5 |
| Weight (kg) | 0,73 |
| Width (mm) | 40 |
| Height (mm) | 56,8 |
IndMALL Automation Dealing offers Servo Motors HK-KT1M3WB at unbeatable prices. The Main Technical Parameters of HK-KT1M3WB are MELSERVO-J5 HK-KT at the best prices. This high-performance unit has a rated capacity of 0,15 kW, delivering 0,48 Nm of rated torque and a maximum torque of 1,7 Nm, ensuring precise motion control. With a rated speed of 3000 rpm and a maximum speed of 6700 rpm, it supports high-speed applications. The low inertia 102 allows for smooth and responsive operation. Designed with a AC current type, it features an advanced 26-BIT-bit encoder with 67108864 pulses per revolution, ensuring exceptional accuracy. The IP67 protection class safeguards against dust and water, making it reliable in industrial environments. Its compact build, with a depth of 140,5 mm, the width of 40 mm, and height of 56,8 mm, ensures easy installation. Take the First Step with a Quote for your requirement of Servo Motors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
