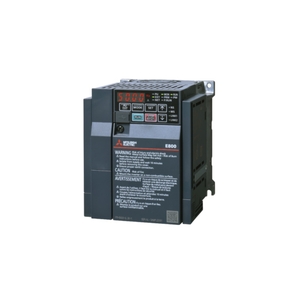

Mitsubishi FR-E820S-0050EPB-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-E820S-0050EPB-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-E820S-0050EPB-60 |
Mitsubishi Variable Frequency Drive FR-E820S-0050EPB-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-E800 SERIES |
| Type | FR-E800-ETH INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 1 |
| Rated Output Current ND (A) | 5 |
| Rated Motor Capacity ND (kW) | 0,75 |
| Frequency Range (Hz) | 0,2โ590 |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | NO |
| USB | 1 (MINI B) |
| Ethernet Port | 2 |
| Built-In Network | CC-LINK IE TSN, PROFINET, MODBUS/TCP, CC-LINK IE FIELD BASIC |
| Leakage Current (mA) | 1,2 |
| Power Loss ND (W) | 50 |
| Protection Class | IP20 |
| Depth (mm) | 135 |
| Weight (kg) | 1,3 |
| Width (mm) | 108 |
| Height (mm) | 128 |
The FR-E820S-0050EPB-60 is a high-performance Mitsubishi Variable Frequency Drive (VFD) from the advanced FR-E800 Series. Compact and reliable, this Mitsubishi VFD is designed for precise motor control, energy efficiency, and seamless integration into industrial automation systems.
The FR-E820S-0050EPB-60 is built with advanced features and robust specifications to ensure reliable operation in demanding applications. Operating on a single-phase AC supply, it supports a rated voltage range of 200V to 240V and delivers a motor capacity of 0.75 kW with an output current of 5A. Its wide 0.2โ590 Hz frequency range and advanced control methods โ including V/F control, real sensorless vector control, PM sensorless vector control, and magnetic flux vector control โ provide accurate torque management and smooth acceleration. The drive also integrates dual Ethernet ports supporting CC-Link IE TSN, Profinet, Modbus/TCP, and CC-Link IE Field Basic for modern industrial connectivity. Engineers benefit from a built-in LED display, PLC functionality with 2K program steps, spring clamp terminals, and USB connectivity. With IP20 protection, a compact design (135 mm depth, 1.3 kg weight), and a power loss of just 50W, the FR-E820S-0050EPB-60 delivers efficiency, safety, and ease of integration.
The FR-E820S-0050EPB-60 is widely applied in pumps, fans, conveyors, and packaging systems where stable motor control and connectivity are vital. Maintenance engineers value its straightforward wiring and dependable STO safety function, while plant managers rely on its ability to minimize downtime and optimize energy use. For engineering students, this Mitsubishi Variable Frequency Drive offers a practical learning platform to understand advanced vector control and industrial Ethernet communication. By combining reliability, efficiency, and modern networking, the FR-E820S-0050EPB-60 is a trusted solution for automation professionals.
Technical resources such as the FR-E820S-0050EPB-60 manual provide installation and parameter-setting guidance, while the FR-E820S-0050EPB-60 datasheet includes wiring diagrams and detailed specifications. Buyers evaluating the FR-E820S-0050EPB-60 price can contact authorized Mitsubishi distributors for genuine products with warranty and service support. With transparent documentation, competitive pricing, and Mitsubishiโs trusted engineering quality, this VFD delivers long-term reliability and efficiency in industrial environments.
