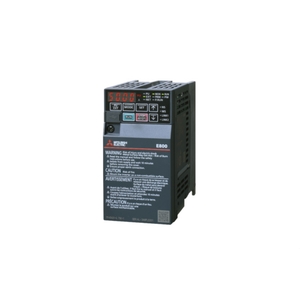

Mitsubishi FR-E820S-0030EPB-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-E820S-0030EPB-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-E820S-0030EPB-60 |
Mitsubishi Variable Frequency Drive FR-E820S-0030EPB-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-E800 SERIES |
| Type | FR-E800-ETH INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 1 |
| Rated Output Current ND (A) | 3 |
| Rated Motor Capacity ND (kW) | 0,4 |
| Frequency Range (Hz) | 0,2β590 |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | NO |
| USB | 1 (MINI B) |
| Ethernet Port | 2 |
| Built-In Network | CC-LINK IE TSN, PROFINET, MODBUS/TCP, CC-LINK IE FIELD BASIC |
| Leakage Current (mA) | 1,2 |
| Power Loss ND (W) | 33 |
| Protection Class | IP20 |
| Depth (mm) | 142,5 |
| Weight (kg) | 0,8 |
| Width (mm) | 68 |
| Height (mm) | 128 |
The Mitsubishi FR-E820S-0030EPB-60 Variable Frequency Drive is a compact, high-performance inverter from the FR-E800 SERIES designed for industrial automation. It delivers 0.4kW motor capacity with 3A rated output current and operates on a 200β240V single-phase AC supply. This Mitsubishi Variable Frequency Drive supports multiple communication protocols including CC-Link IE TSN, PROFINET, and Modbus/TCP for seamless network integration in automation systems.
Used widely in conveyors, packaging machinery, material handling, and process control systems, the Mitsubishi FR-E820S-0030EPB-60 ensures efficient speed regulation and energy-saving operation. Its Safe Torque Off (STO) feature enhances safety, while spring-clamp terminals and built-in LED display simplify setup and maintenance. The integrated Ethernet connectivity ensures smooth communication across industrial networks.
The Mitsubishi FR-E820S-0030EPB-60 Variable Frequency Drive combines precision motor control with robust construction for dependable performance in industrial environments. With its IP20-rated enclosure, USB connectivity, and multi-network support, it delivers stable and reliable operation. Backed by Mitsubishiβs engineering excellence, this FR-E800 SERIES drive is a trusted choice for Indian industries seeking durability and automation efficiency.
