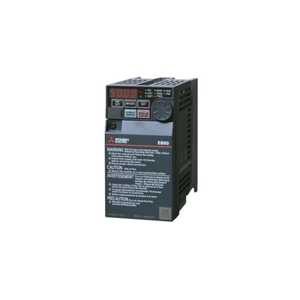

Mitsubishi FR-E820S-0030-4-60 Variable Frequency Drive
The Mitsubishi FR-E820S-0030-4-60 Variable Frequency Drive operates at 200–240V AC single-phase input with 0.4kW motor capacity and IP20 protection. Belonging to the Mitsubishi Variable Frequency Drive range under the Mitsubishi brand, this model is part of the FR-E800 SERIES. It supports V/F, Sensorless Vector, and Magnetic Flux Vector control, features a 4-digit LED display, includes RS-485 and USB Mini-B ports, and provides Safe Torque Off (STO) for safety compliance.
| Brand/Manufacturer | Mitsubishi Electric |
| Product Type | VFD (Variable Frequency Drive) |
| Model No. | FR-E820S-0030-4-60 |
Mitsubishi Variable Frequency Drive FR-E820S-0030-4-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-E800 SERIES |
| Type | FR-E800 RS485 INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 1 |
| Rated Output Current ND (A) | 3 |
| Rated Motor Capacity ND (kW) | 0,4 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 7 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Depth (mm) | 142,5 |
| Width (mm) | 68 |
| Height (mm) | 128 |
| Protection Class | IP20 |
| Weight (kg) | 0,8 |
The Mitsubishi FR-E820S-0030-4-60 Variable Frequency Drive is designed for efficient motor control in the Mitsubishi Variable Frequency Drive family. With a rated output current of 3A and rated motor capacity of 0.4kW, it operates across a frequency range of 0.2–590Hz. As part of the FR-E800 SERIES, it supports AC input (200–240V) and ensures smooth control for both induction and PM motors in industrial automation environments.
Used in conveyors, material handling, packaging machines, and general automation systems, the Mitsubishi FR-E820S-0030-4-60 ensures stable motor performance with flexible control methods. Its Safe Torque Off (STO) function enhances safety, while spring clamp I/O terminals and RS-485 communication simplify installation and integration in modern industrial setups.
The Mitsubishi FR-E820S-0030-4-60 Variable Frequency Drive, part of the reliable FR-E800 SERIES, combines precision control, durability, and compact design. With features such as USB connectivity, built-in PLC function (2K steps), and IP20 protection, it ensures dependable performance for Indian industrial applications. Mitsubishi’s engineering quality and proven reliability make it a trusted choice for diverse automation systems.
