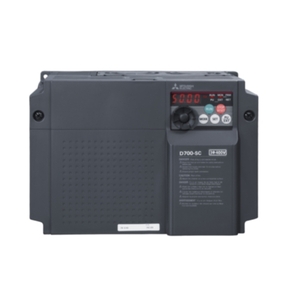

Mitsubishi FR-D720-7.5K Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-D720-7.5K:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-D720-7.5K |
Mitsubishi Variable Frequency Drive FR-D720-7.5K Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-D700 SERIES |
| Type | FR-D700 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 31,8 |
| Rated Motor Capacity ND (kW) | 7,5 |
| Control Method | V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | NO |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 360 |
| Protection Class | IP20 |
| Depth (mm) | 155 |
| Weight (kg) | 3,6 |
| Width (mm) | 220 |
| Height (mm) | 150 |
| Standby Power Consumption (W) | 13-22,5 |
The Mitsubishi FR-D720-7.5K Variable Frequency Drive provides 7.5kW capacity, a 31.8A output rating, vector-based control modes, and STO protection for induction motors. The Mitsubishi FR-D720-7.5K belongs to the FR-D700 SERIES and is commonly used in industrial automation applications requiring dependable speed regulation and consistent torque response.
This drive supports conveyors, packaging machines, process automation, and material-handling equipment. Its V/F control, stable torque behavior, MODBUS-RTU compatibility, and reliable frequency output help maintain smooth motor operation in continuous-duty environments where stable performance and simple integration are essential.
The Mitsubishi FR-D720-7.5K Variable Frequency Drive combines 7.5kW motor capability, 31.8A ND current rating, STO functionality, and vector control to deliver solid performance for everyday industrial needs. With its FR-D700 SERIES design, the drive ensures long-term reliability, predictable operation, and easy maintenance, making it a trusted choice for engineers handling critical motor-control tasks.
