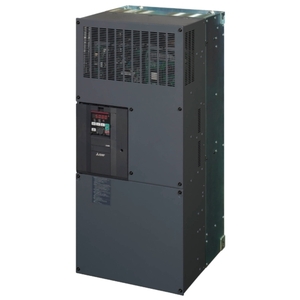

Mitsubishi Variable Frequency Drive FR-A870-02860-E2-60B Technical Specifications:
Specification
Value
Series
FR-A SERIES
Type
FR-A800-E INVERTER
Minimum Rated Voltage (V)
525/600
Min. Permissible Voltage (V)
472/540
Maximum Rated Voltage (V)
600/690
Max. Permissible Voltage (V)
660/759
Current Type
AC
Phases
3
Rated Output Current ND (A)
230
Frequency Range (Hz)
50/60
Control Method
SOFT-PWM/HIGH FRQ PWM/VECTOR
Motor Type
INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter
YES
Display
FR-DU08
Display Type
5 DIGITS LED
Program Memory
6K
Program Memory Unit
STEPS
Integrated Digital Inputs
12
Digital Outputs (Transistor)
5
Digital Outputs (Relay)
2
Depth (mm)
410
Width (mm)
380
Height (mm)
900
Protection Class
IP20
Weight (kg)
122
Give Us a Call for Variable Frequency Drive FR-A870-02860-E2-60B at the lowest pricing. In-depth Technical Analysis of FR-A870-02860-E2-60B feature FR-A800-E INVERTER from the FR-A SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 525/600V, a minimum permissible voltage of 472/540V, a maximum rated voltage of 600/690V, and a maximum permissible voltage of 660/759V. It is designed with an IP20 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 410 mm, a width of 380 mm, and a height of 900 mm, making it suitable for space-constrained installations. It weighs 122 kg, ensuring easy handling and installation. Elevate Your Project with a Quote for your requirement of Variable Frequency Drive. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
