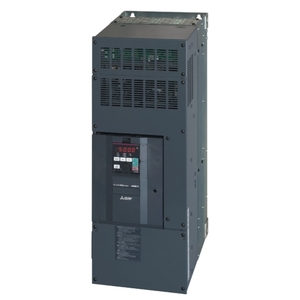

Mitsubishi Variable Frequency Drive FR-A870-00890-E2-60B Technical Specifications:
Specification
Value
Series
FR-A SERIES
Type
FR-A800-E INVERTER
Minimum Rated Voltage (V)
525/600
Min. Permissible Voltage (V)
472/540
Maximum Rated Voltage (V)
600/690
Max. Permissible Voltage (V)
660/759
Current Type
AC
Phases
3
Rated Output Current ND (A)
66
Rated Motor Capacity ND (kW)
55
Frequency Range (Hz)
50/60
Control Method
SOFT-PWM/HIGH FRQ PWM/VECTOR
Motor Type
INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter
YES
Safe Torque Off (STO)
YES
Regenerative (4Q)
YES
Integrated DC Choke
YES
Display
FR-DU08
Display Type
5 DIGITS LED
PLC Function
YES
Program Memory
6K
Program Memory Unit
STEPS
Integrated Digital Inputs
12
Digital Outputs (Transistor)
5
Digital Outputs (Relay)
2
Integrated Analogue Inputs
3
Integrated Analogue Outputs
2
IO Type of Terminal Block
SPRING CLAMP
Expandable
YES
USB
1+1 MINI
Ethernet Port
1
Built-In Network
CC-LINK IE FIELD BASIC, MODBUS/TCP
Power Loss ND (W)
900
Protection Class
IP20
Depth (mm)
410
Weight (kg)
59
Width (mm)
251
Height (mm)
753
Power Loss SLD (W)
1400
Obtain a Quote for Variable Frequency Drive FR-A870-00890-E2-60B at economical prices. Specifications Overview for FR-A870-00890-E2-60B reveals FR-A800-E INVERTER from the FR-A SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 525/600V, a minimum permissible voltage of 472/540V, a maximum rated voltage of 600/690V, and a maximum permissible voltage of 660/759V. It is designed with an IP20 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 410 mm, a width of 251 mm, and a height of 753 mm, making it suitable for space-constrained installations. It weighs 59 kg, ensuring easy handling and installation. Take the First Step with a Quote for your requirement of Variable Frequency Drive. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
