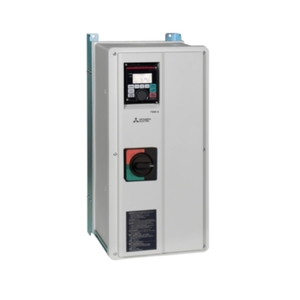

Mitsubishi Variable Frequency Drive FR-F846-00023-E2-60L2-S6 Technical Specifications:
Specification
Value
Series
FR-F800 SERIES
Type
FR-F846-E2-S6 WITH MAIN SWITCH
Minimum Rated Voltage (V)
380
Min. Permissible Voltage (V)
323
Maximum Rated Voltage (V)
500
Max. Permissible Voltage (V)
550
Current Type
AC
Phases
3
Frequency Range (Hz)
0,2–590
Control Method
V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Type
INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter
YES
Display
FR-DU08
Display Type
5 DIGITS LED (12 SEGMENT)
Program Memory
6K
Program Memory Unit
STEPS
Integrated Digital Inputs
12
Digital Outputs (Transistor)
5
Digital Outputs (Relay)
2
Depth (mm)
325
Width (mm)
238
Height (mm)
520
Protection Class
IP55
Weight (kg)
15
Mail Us for your needs in Variable Frequency Drive FR-F846-00023-E2-60L2-S6 with budget-friendly prices. The Main Technical Parameters of FR-F846-00023-E2-60L2-S6 include FR-F846-E2-S6 WITH MAIN SWITCH from the FR-F800 SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 380V, a minimum permissible voltage of 323V, a maximum rated voltage of 500V, and a maximum permissible voltage of 550V. It is designed with an IP55 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 325 mm, a width of 238 mm, and a height of 520 mm, making it suitable for space-constrained installations. It weighs 15 kg, ensuring easy handling and installation. Customize Your Experience with a Quote for your requirement off Variable Frequency Drive. Experience the difference with our competitive pricing and superior support over other Suppliers.
