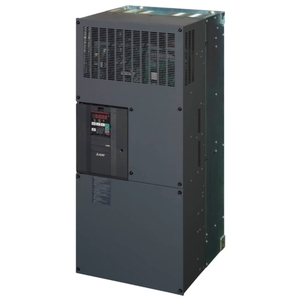

Mitsubishi FR-A870-02300-E2-60B Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-A870-02300-E2-60B:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-A870-02300-E2-60B |
Mitsubishi Variable Frequency Drive FR-A870-02300-E2-60B Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-A SERIES |
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 525/600 |
| Min. Permissible Voltage (V) | 472/540 |
| Maximum Rated Voltage (V) | 600/690 |
| Max. Permissible Voltage (V) | 660/759 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 185 |
| Frequency Range (Hz) | 50/60 |
| Control Method | SOFT-PWM/HIGH FRQ PWM/VECTOR |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | YES |
| Integrated DC Choke | YES |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD BASIC, MODBUS/TCP |
| Power Loss ND (W) | 3000 |
| Protection Class | IP20 |
| Depth (mm) | 410 |
| Weight (kg) | 120 |
| Width (mm) | 380 |
| Height (mm) | 900 |
| Power Loss SLD (W) | 3700 |
Talk to Our Engineer for Variable Frequency Drive FR-A870-02300-E2-60B with exclusive offers. Core System Specifications of FR-A870-02300-E2-60B are FR-A800-E INVERTER from the FR-A SERIES at competitive prices. This AC inverter operates on 3-phase power with a minimum rated voltage of 525/600V, a minimum permissible voltage of 472/540V, a maximum rated voltage of 600/690V, and a maximum permissible voltage of 660/759V. It is designed with an IP20 protection class, ensuring safe operation in controlled environments. The inverter has a compact build, with a depth of 410 mm, a width of 380 mm, and a height of 900 mm, making it suitable for space-constrained installations. It weighs 120 kg, ensuring easy handling and installation. Don't Miss Out on a Quote for your requirement of Variable Frequency Drive. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
