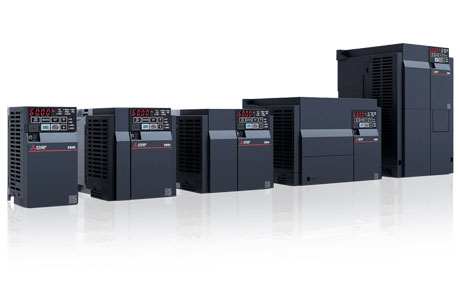

Mitsubishi VFD – Variable Frequency Drive & Inverter

Mitsubishi Variable Frequency Drives (VFD) represent a widely adopted motor control technology used across industrial applications requiring precise speed regulation. These drives provide stable torque control, efficient load handling, and reliable frequency modulation for three-phase induction motors in automation environments. The Mitsubishi VFD, available in multiple configurations, supports vector control, constant-torque operation, and optimized excitation algorithms for improved energy performance. The Mitsubishi Variable Frequency Drive, manufactured by Mitsubishi Electric, integrates protection functions, carrier-frequency adjustments, soft-start capability, and multi-protocol communication interfaces for flexible deployment.

Mitsubishi inverter drives in the FR-A800, FR-D700, FR-E700, and FR-F800 series provide compatibility with a wide voltage range, configurable I/O terminals, and scalable motor tuning profiles. These systems ensure stable acceleration profiles, controlled deceleration ramps, continuous overload management, and harmonics-aware operation. Explore more about Mitsubishi at Mitsubishi. This entity is defined by its control architecture, semiconductor-based drive stage, industrial motor classification, and frequency-conversion interface.

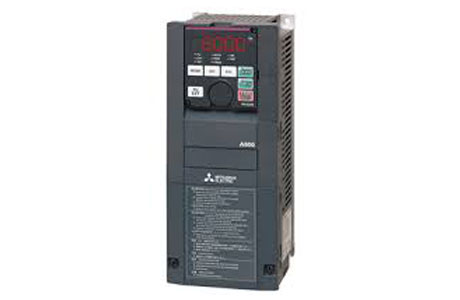

Mitsubishi VFD Drive: FR-A800 Series

Mitsubishi Electric FR-A800 series offers:

Fast response mode for high-quality production.
Advanced energy-saving features.
USB trace function for machine condition recording.
Built-in Ethernet interface (E2 Version).
Autotuning for Permanent Magnet and Induction Motors.
Built-in PLC function and absolute positioning.

Mitsubishi Drives: FR-A800-E Series

Mitsubishi drives FR-A800-E series is a specialized frequency inverter with the following main specifications:

Equipped with an integral PLC and innovative autotuning for motors.
Provides braking without brake resistor and extended PID control.
Includes Smart Condition Monitoring for predictive maintenance.
Supports 12 different networking options.
Models range from 0.25 kW to 355 kW.

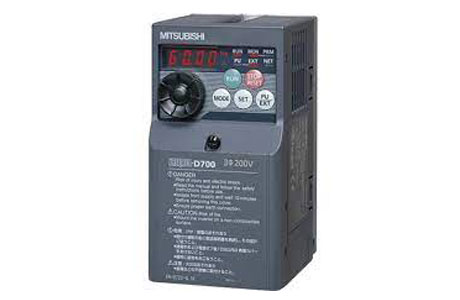

Mitsubishi VFD Inverter: FR-D700 Series

The Mitsubishi Inverter FR-D700 series is designed for compact and efficient micro-drive solutions. Key specifications include:

User-Friendly Operation: Features simplified wiring, easy parameter setting, integrated control unit, and a clear LED display.
Compact Design: Allows for side-by-side mounting and efficient heat dissipation.
High Overload Capacity: Up to 200% overload capacity.
Energy Efficiency: Features OEC function for optimized power consumption.

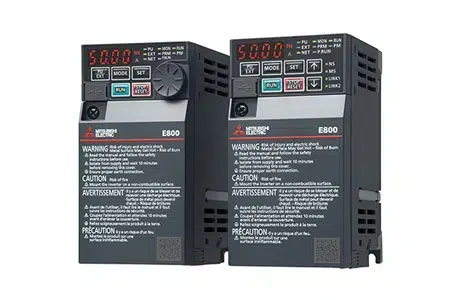

Mitsubishi AC Drive: FR-E800 Series

Mitsubishi AC Drive FR-E800 series frequency inverters

Network Support: Compatible with various networks for flexible system design.
Drive Performance: High-quality drive performance with multiple functional capabilities.
Functional Safety: Enhanced safety features for human and FA device collaboration.
Energy Saving: Utilizes energy-efficient motors for reduced power consumption.
Maintenance Features: Includes tools for predictive and preventive maintenance.

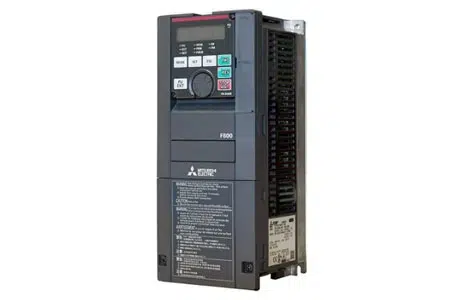

Mitsubishi Frequency Drive: FR-F800 Series

The Features of the Mitsubishi Frequency Drive FR-F800 Series:

Energy Saving: The FR-F800 series is designed with energy-saving functions, making it an efficient choice for various applications.
Drive Performance: Offers exceptional low-speed and high-torque driving capabilities.
Selectable Multiple Rating: Features two types of ratings – LD (Light Duty) and SLD (Super Light Duty), allowing for flexibility depending on the fan or pump load.
Standard 24 VDC Control Power Input: Comes equipped with a 24 VDC control power input as a standard feature, enhancing its versatility in different setups.

Mitsubishi Inverter: FR-CS80 Series

Mitsubishi Electric FR-CS80 series offers compact and smart inverter drive, designed for space efficiency and optimal motor control.

Space Efficiency: Low heat design allows for a smaller footprint.
Motor Control: Flux vector control with autotuning ensures precise motor management.
Plug and Play: Easy connection with HMI (GOT) for user convenience.
Communication: Standard RS485 communication, supporting Modbus®/RTU and Mitsubishi protocol.
Setup and Maintenance: Simplified setup via FR Configurater2 software and easy maintenance with accessible wiring and control terminal cover.

Mitsubishi Variable Frequency Drives (VFDs) are highly regarded for their ability to optimize energy use and safeguard motors by precisely managing AC motor speeds. The Mitsubishi VFD series, including models like the D700, A800, and F800, caters to a wide range of industrial applications. Designed for efficiency and reliability, these Mitsubishi drives feature advanced functionality for modern automation needs.

At IndMALL Automation, we offer an extensive range of Mitsubishi AC drives, tailored for various industrial scenarios. Whether you need a Mitsubishi VFD D700 with user-friendly settings or an A800 VFD equipped with advanced parameters, our selection ensures the right solution for your requirements. Comprehensive support is available, including the Mitsubishi VFD manual PDF, Mitsubishi drive parameter lists, and guides for Mitsubishi VFD fault codes and error codes like those for the A800 and E800 VFDs.

For industries needing innovation and sustainability, Mitsubishi inverters include solar-compatible and energy-efficient models. Detailed resources, such as the Mitsubishi D700 parameter list, wiring diagrams, and parameter settings, enable seamless integration and troubleshooting. Additionally, Mitsubishi frequency inverters and VFDs come with features like precise motor control, robust performance, and easy-to-use Mitsubishi drive software.

Explore Mitsubishi Electric VFDs with competitive pricing and trusted support. From Mitsubishi VFD distributors to expert guidance on Mitsubishi VSDs and frequency drives, we ensure reliable solutions across all industries. Whether you need an Mitsubishi A800 VFD fault code list, a D700 VFD manual, or insights into Mitsubishi VFD inverter functionality, IndMALL Automation is your go-to partner for industrial automation excellence.

Product List:

Model No	Kilo Watt	Output Current	Min/Max Rated Voltage (V)	Frequency Range (Hz)

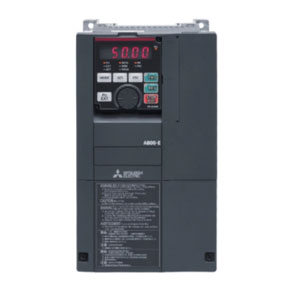

FR-A840-00770-E2-60	22-37kW	77A	3×380-500V	0,2–590

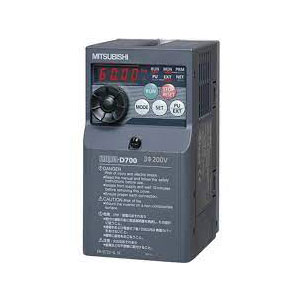

FR-D720S-042SC-EC	0,75kW	4,2A	1×200-240V	0,2–400
FR-D720S-025SC-EC	0,4kW	2,5A	1×200-240V	0,2–400
FR-A840-00126-E2-60	2,2-5,5kW	12A;(3,7kW; 9A)	3×380-500V	0,2–590

Frequently Asked Questions

Why VFD is used in AC motor?

A Variable Frequency Drive (VFD) is commonly used with AC motors for several key reasons

Speed Control: VFDs enable precise control of AC motor speed, unlike direct power supply connections.

Energy Efficiency: By regulating motor speed and torque, VFDs can significantly cut energy usage.

Motor Protection: VFDs safeguard motors from issues such as overvoltage, undervoltage, and phase imbalance.

Reduced Wear and Tear: VFDs provide soft start and stop capabilities, minimizing mechanical stress on motors.

Improved Process Control: Precise motor speed control with VFDs can enhance product quality and process efficiency.

In essence, a VFD can enhance control, boost energy efficiency, and extend the lifespan of AC motors.

Is a VFD an inverter?

Yes, a VFD (Variable Frequency Drive) is a type of inverter. Its primary function is to convert electrical energy from one form to another. A VFD changes fixed frequency and voltage input into a variable frequency and voltage output.

This feature allows precise control of the speed and torque of an AC motor. In essence, a VFD is a specialized inverter designed for precise motor control applications.

Does a VFD require a 3-phase motor?

Yes, typically a Variable Frequency Drive (VFD) is designed to control the speed of a 3-phase AC motor. VFDs can modulate the power supply to adjust the motor’s speed and torque.

However, certain VFDs can also work with single-phase motors, but these applications are less common and often more complex.

Always ensure your VFD and motor are compatible for optimal performance.

Choose IndMALL for a great experience from selection to support. Explore our range today and discover the Mitsubishi VFD that’s perfect for your business needs.
