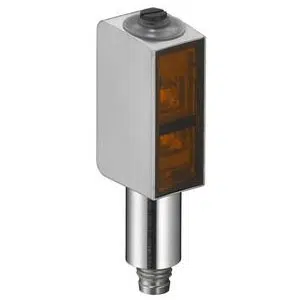

Leuze ODT53C.S3/L6-M8 Photoelectric Sensor
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | ODT53C.S3/L6-M8 |
Leuze ODT53C.S3/L6-M8 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | 2 independent switching outputs HYGIENE design Measurement value output Small light spot (S) |
| Sensing Distance | 0.01 ... 0.08 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 12 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 750 Hz |
| Response time | 0.66 ms |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 14 mm x 35.4 mm x 20.4 mm |
| Housing material | Stainless steel |
| Lens cover material | Plastic (PMMA+) with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 70 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 / IP 68 / IP 69K |
Obtain a Quote for Leuze 4 mm Light spot size diffuse sensor ODT53C.S3/L6-M8 part no: 50148168 at attractive prices. Engineering Specifications of ODT53C.S3/L6-M8, 50148168 detail Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.4 mm x 20.4 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 12 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.01 ... 0.08 m Sensing Distance, Connector Type of connection, Stainless steel Housing material, IP 67 / IP 68 / IP 69K degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 4 mm Light spot size diffuse sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
