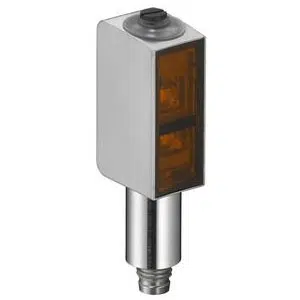

Leuze HT53C.S/LG-M8 Photoelectric Sensor

Name: Leuze HT53C.S/LG-M8 Photoelectric Sensor
Brand: Leuze
SKU: HT53C.S/LG-M8
Rating: 5.5 (12 reviews)

Brand	Leuze
Product Type	Photoelectric Sensor
Product	HT53C.S/LG-M8

Leuze HT53C.S/LG-M8 Photoelectric Sensor – Technical Specifications

Specification	Value
Design	Cubic
Operating principle	Diffuse reflection principle with background suppression
Special version	HYGIENE design Small light spot (S)
Sensing Distance	0.005 ... 0.2 m
Beam path	-
Light source	LED, Red
Wavelength	650 nm
Type of light spot geometry	-
Supply voltage UB	10 ... 30 V, DC, Incl. residual ripple
Switching Output 1	Transistor, Push-pull
Switching principle	IO-Link / light switching (PNP)/dark switching (NPN)
Switching Output 2	Transistor, Push-pull
Switching principle	Dark switching (PNP)/light switching (NPN)
Switching frequency	1,000 Hz
Response time	0.5 ms
Function	Signal IN Signal OUT Voltage supply
Type of connection	Connector
Thread size	M8
Type	Male
Material	Stainless steel
No. of pins	4 -pin
Encoding	-
Dimension (W x H x L)	14 mm x 35.4 mm x 20.4 mm
Housing material	Stainless steel
Lens cover material	Plastic (PMMA+) with scratch-resistant Indium protective coating
Housing color	Silver
Type of display	LED
Ambient temperature, operation	-40 ... 70 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 67 / IP 68 / IP 69K

IndMALL Offers Leuze 14 mm x 35.4 mm x 20.4 mm Dimensions diffuse sensor HT53C.S/LG-M8 part no: 50148171 at the lowest pricing. Technical Specs Summary of HT53C.S/LG-M8, 50148171 includes Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.4 mm x 20.4 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs 1, IO-Link / light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.005 ... 0.2 m Sensing Distance, Connector Type of connection, Stainless steel Housing material, IP 67 / IP 68 / IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 14 mm x 35.4 mm x 20.4 mm Dimensions diffuse sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
