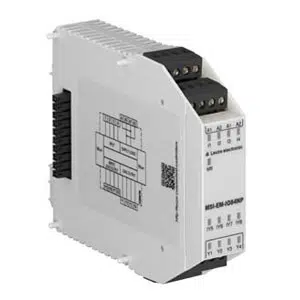

Leuze MSI-EM-IO84NP-03 Safety Controller
The Leuze MSI-EM-IO84NP-03 Safety Controller (Part No: 50132998 ) offers a Processing of non-safe signals, 4 IN, 4 OUT, 4 programmable I/O, Spring-cage terminal, 16-pin . Manufactured by Leuze under the Leuze Safety Controller category, this model belongs to the MSI Series.
| Brand | Leuze |
| Product Type | Safety Controller |
| Product | MSI-EM-IO84NP-03 |
Leuze MSI-EM-IO84NP-03 Safety Controller β Technical Specifications
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 22.5 mm x 107 mm x 120.8 mm |
| Application | Processing of non-safe signals |
| Number of safe I/Os | 4 IN, 4 OUT, 4 programmable I/O |
| Supply voltage UB | 24 V, DC, -30 ... 25 % |
| Power consumption, max. | 0.5 W |
| Number of outputs | 4 Piece(s) |
| Type of digital output | Transistor |
| Number of inputs | 4 Piece(s) |
| Interface Type | Internal bus (SBUS+) |
| Number of connections | 1 Piece(s) |
| Con:1 Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Terminal |
| Type of terminal | Spring-cage terminal |
| No. of pins | 16-pin |
| Con:2 Function | - |
| Type of connection | - |
| Housing color | Gray |
| Type of fastening | Snap-on mounting |
| Ambient temperature, operation | 25 ... 65 Β°C |
| Ambient temperature, storage | -25 ... 70 Β°C |
| Degree of protection | IP 20 |
Talk to Our Engineer for Leuze Non-safe I/O Module Safety Controller MSI-EM-IO84NP-03 50132998 with Exclusive offers. The Main Technical Parameters of MSI-EM-IO84NP-03 are 22.5 mm x 107 mm x 120.8 mm Dimensions, - Number of Safe I/Os, 24 V, DC, -30 ... 25 % Supply Voltage, 0.5 W Power Consumption, Internal bus (SBUS+) Interface Type, Terminal Connection Spring-cage terminal, 16-pin, Snap-on mounting, Gray Housing color, IP 20 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze Non-safe I/O Module Safety Controller.
