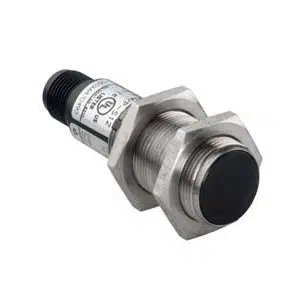

Leuze LSEL 318M/P Photoelectric Sensor
The Leuze LSEL 318M/P Photoelectric Sensor (Part No: 50083175 ) offers a - operating range, Transistor, PNP output, 2000 mm PVC Cable 4 -wire . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LSEL 318M/P |
Leuze LSEL 318M/P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 318 Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | - |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 25 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Output | Transistor, PNP |
| Switching Principle | Light switching/Dark switching |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Readiness delay | 30 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | 2000 mm PVC Cable |
| Number of conductors or Pins | 4 -wire |
| Dimension (W x H x L) | 18 mm x 50 mm |
| Housing material | Stainless steel |
| Lens cover material | Plastic |
| Housing color | Black, Silver |
| Type of display | LED |
| Ambient temperature | operation -25 ... 60 Β°C storage -40 ... 70 Β°C |
| Degree of protection | IP 67 |
| Net weight | 130 g |
IndMALL Dealing in Leuze 5000 Hz Switching Frequency Receiver Sensor LSEL 318M/P part no: 50083175 at the best rates. Operational Specifications for LSEL 318M/P, are 318 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC power supply, 0 ... 25 mA current, 2 Piece(s) digital switching output, Transistor, PNP output, Light switching/Dark switching, 5,000 Hz frequency, 2000 mm PVC Cable, 4 -wire, 18 mm x 50 mm dimensions, Black, Silver housing color, LED
display, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 5000 Hz Switching Frequency Receiver Sensor.
